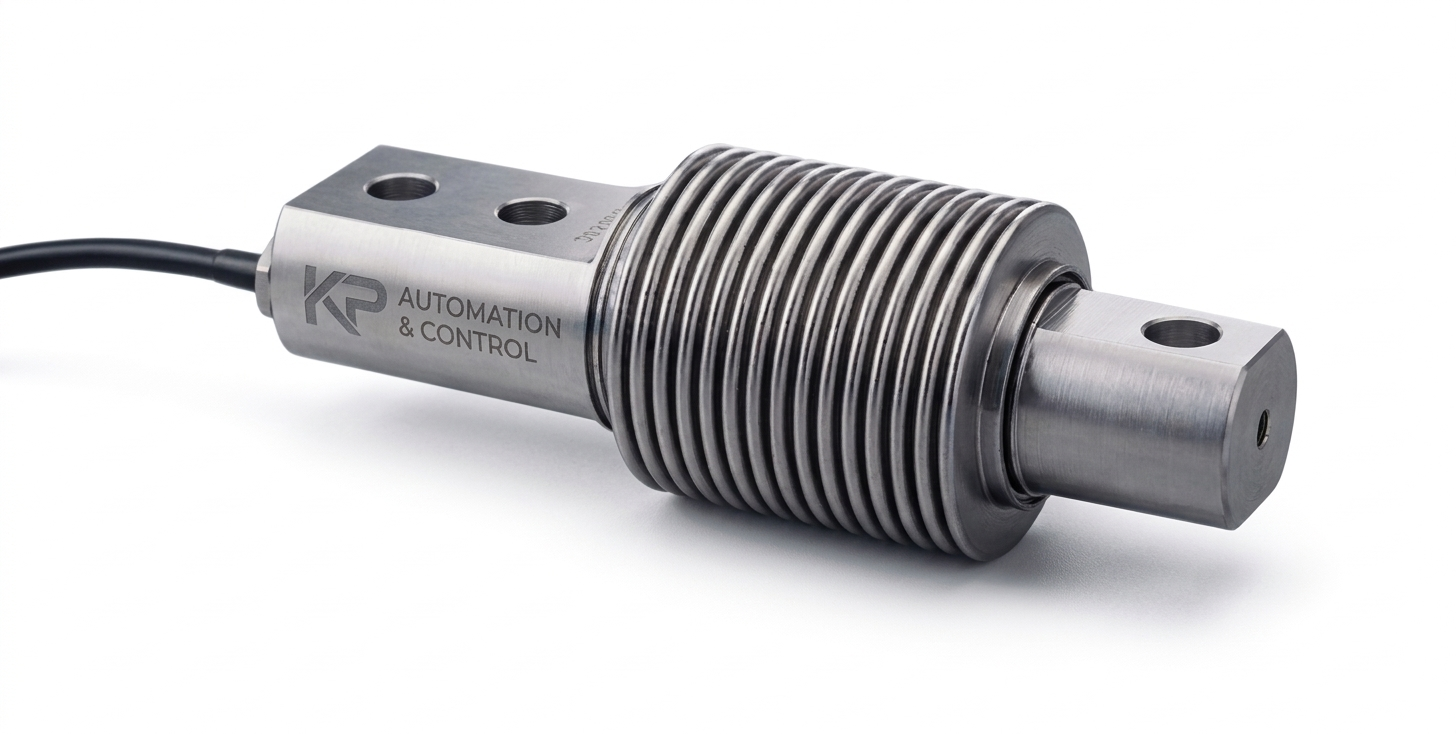

Beam Load Cell
Compression | Electronics Scale | IP68
₹3200.00
Beam Load Cell is designed for electronics scale and industrial weighing applications that require durable compression sensing and reliable output. It supports stable performance and accurate monitoring for Ahmedabad, Gandhinagar, and nearby industrial environments.
Parameter | Value |
|---|---|
Product Name | Beam Load Cell |
Model Name/Number | Beam Load Cell |
Brand | KP Control and Automation |
Accuracy Class | C3 |
Protection Class | IP68 |
Type | Compression |
Material | Alloy Steel |
Application | Electronics Scale |
Load Cell Intervals (nLC)/Divisions | 4000 |
Packaging Type | Box |
Capacity | 1000 kg |
Load Capacity | 5kg |
Parameter | Value |
|---|---|
Rated Load (KG) | 10, 20, 30, 50, 100, 200, 300, 500 |
Precision | C2/C3 |
Output Impedance(Ω) | 350 + 5 |
Composition Error | 0.03/0.02 |
Insulation (MΩ) | > 20000 |
Rated Output(mv/v) | 3.0 + 0.2 |
Excitation Voltage(V) | 5~15(DC) |
Non-Linearity (%FS) | 0.025 |
Compensated Temp.(˚C) | -10~+50 |
Hysteresis (%FS) | 0.02 |
Use Temp. (˚C) | -20~+60 |
Repeatability (%FS) | 0.02/0.01 |
Temp. Effect on Span(%FS) | 0.02 |
Creep (%FS) | 0.03/0.02 |
Temp. Effect on Zero(%FS) | 0.02 |
Zero Balance (%FS) | + 1.0 |
Safe Overload(%FS) | 120 |
Input Impedance(Ω) | 400 + 10 |
Ultimate Overload(%FS) | 150 |
