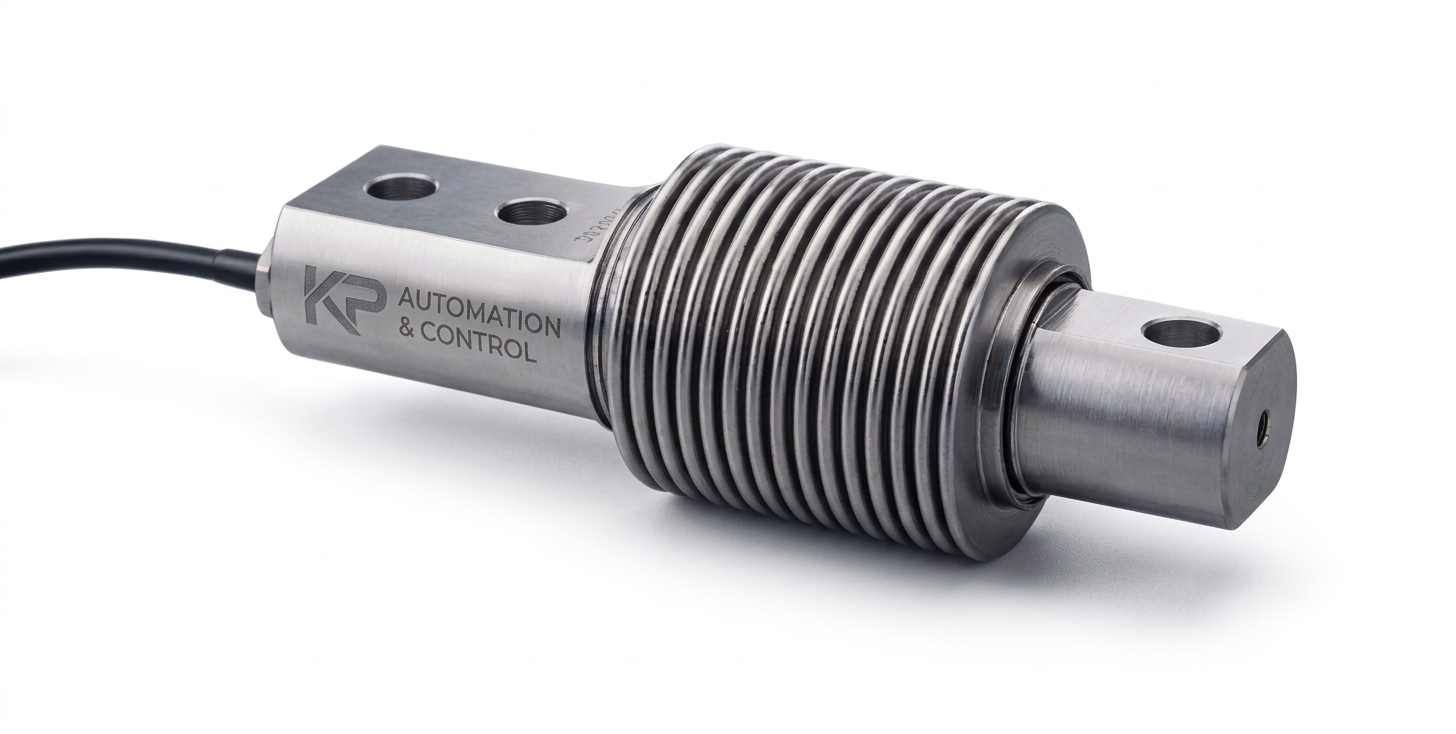

Beam Type Load Cell
Standard | Beam Type | Industrial
₹3200.00
Beam Type Load Cell is suitable for industrial weighing applications that need dependable beam-type sensing and flexible standard configuration. It offers stable performance for Ahmedabad, Gandhinagar, and nearby industrial systems.
Parameter | Value |
|---|---|
Product Name | Beam Type Load Cell |
Model Name/Number | Beam Type Load Cell |
Brand | KP Control and Automation |
Capacity | Standard |
Original Mentioned Model | Standard |
Cable Length | Standard |
Size | Standard |
Wight | Standard |
Parameter | Value |
|---|---|
Rated Load (KG) | 10, 20, 30, 50, 100, 200, 300, 500 |
Precision | C2/C3 |
Output Impedance(Ω) | 350 + 5 |
Composition Error | 0.03/0.02 |
Insulation (MΩ) | > 20000 |
Rated Output(mv/v) | 3.0 + 0.2 |
Excitation Voltage(V) | 5~15(DC) |
Non-Linearity (%FS) | 0.025 |
Compensated Temp.(˚C) | -10~+50 |
Hysteresis (%FS) | 0.02 |
Use Temp. (˚C) | -20~+60 |
Repeatability (%FS) | 0.02/0.01 |
Temp. Effect on Span(%FS) | 0.02 |
Creep (%FS) | 0.03/0.02 |
Temp. Effect on Zero(%FS) | 0.02 |
Zero Balance (%FS) | + 1.0 |
Safe Overload(%FS) | 120 |
Input Impedance(Ω) | 400 + 10 |
Ultimate Overload(%FS) | 150 |
