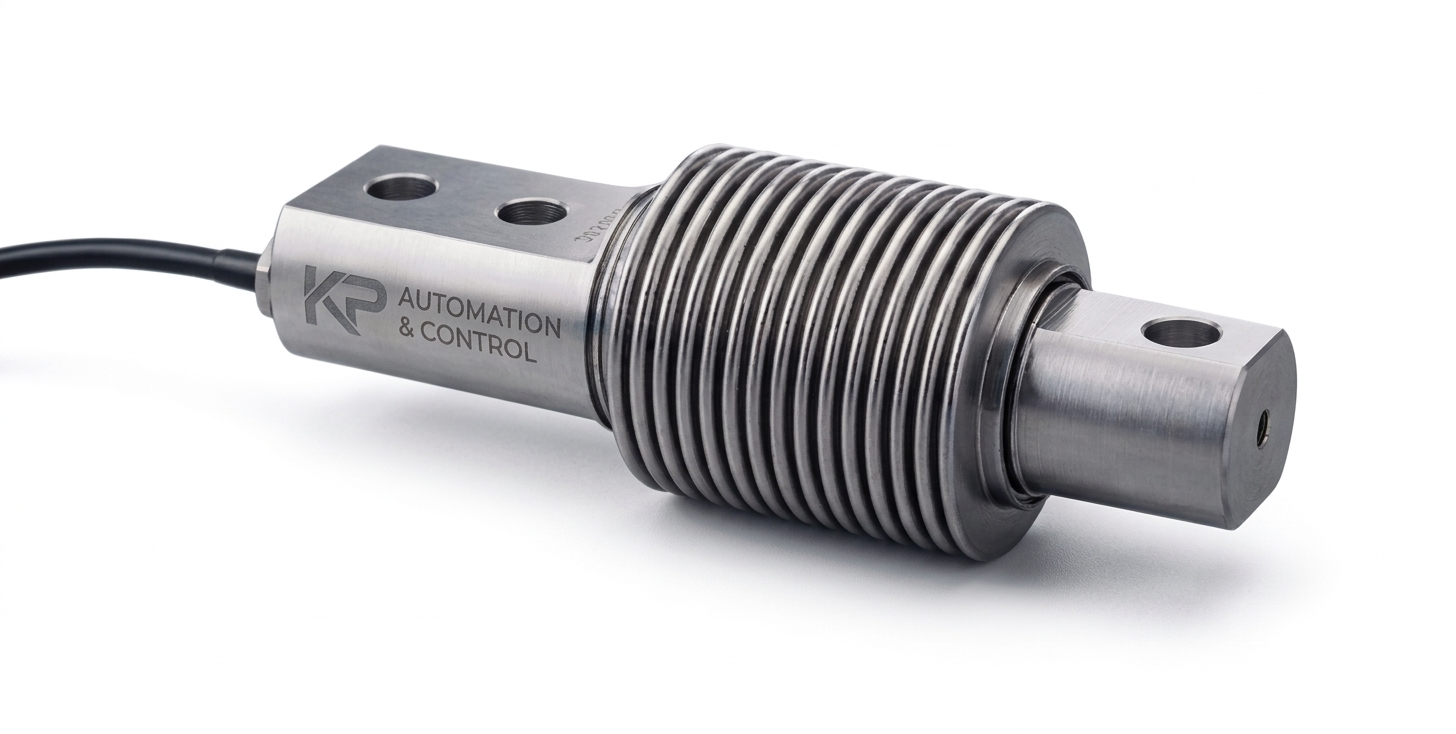

Bending Beam Load Cell
200 kg | Bending Beam | IP68
₹2300.00
Bending Beam Load Cell is designed for accurate weight and force measurement in platform scales, tanks, and process control systems. It offers stable readings, dependable performance, and durable construction for Ahmedabad, Gandhinagar, and nearby industrial users.
Parameter | Value |
|---|---|
Product Name | Bending Beam Load Cell |
Model Name/Number | Bending Beam Load Cell |
Brand | KP Control and Automation |
Load Capacity | 200 kg |
Type | Bending Beam |
Material | Alloy Steel |
Ingress Protection | IP68 |
Original Mentioned Model | KP919 |
Load Cell Certifications | OIML |
Output Sensitivity(FS) | 2.0 +/- 0.002 mV/V |
Parameter | Value |
|---|---|
Rated Load (KG) | 10, 20, 30, 50, 100, 200, 300, 500 |
Precision | C2/C3 |
Output Impedance(Ω) | 350 + 5 |
Composition Error | 0.03/0.02 |
Insulation (MΩ) | > 20000 |
Rated Output(mv/v) | 3.0 + 0.2 |
Excitation Voltage(V) | 5~15(DC) |
Non-Linearity (%FS) | 0.025 |
Compensated Temp.(˚C) | -10~+50 |
Hysteresis (%FS) | 0.02 |
Use Temp. (˚C) | -20~+60 |
Repeatability (%FS) | 0.02/0.01 |
Temp. Effect on Span(%FS) | 0.02 |
Creep (%FS) | 0.03/0.02 |
Temp. Effect on Zero(%FS) | 0.02 |
Zero Balance (%FS) | + 1.0 |
Safe Overload(%FS) | 120 |
Input Impedance(Ω) | 400 + 10 |
Ultimate Overload(%FS) | 150 |
