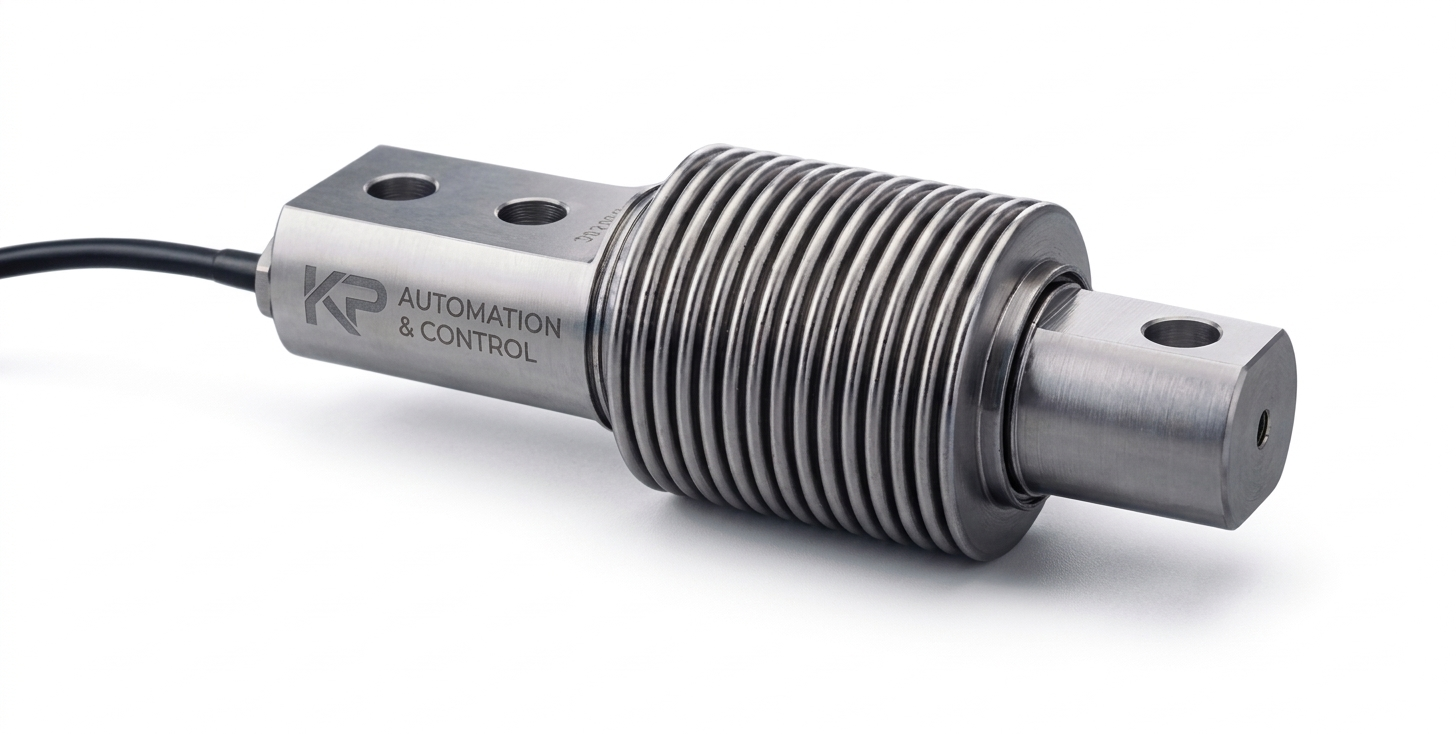

Bending Beam Load Cells
100 kg | Bending Beam | IP68
₹2200.00
Bending Beam Load Cells are designed for accurate weight and force measurement in platform scales, tanks, and industrial process systems. They offer stable output and dependable performance for Ahmedabad, Gandhinagar, and nearby industrial applications.
Parameter | Value |
|---|---|
Product Name | Bending Beam Load Cells |
Model Name/Number | Bending Beam Load Cells |
Brand | KP Control and Automation |
Load Capacity | 100 kg |
Type | Bending Beam |
Material | Alloy Steel |
Ingress Protection | IP68 |
Original Mentioned Model | KP919 |
Load Cell Certifications | OIML |
Output Sensitivity(FS) | 2.0 +/- 0.002 mV/V |
Parameter | Value |
|---|---|
Rated Load (KG) | 10, 20, 30, 50, 100, 200, 300, 500 |
Precision | C2/C3 |
Output Impedance | 350 + 5 |
Composition Error | 0.03 / 0.02 |
Insulation | > 20000 MΩ |
Rated Output | 3.0 + 0.2 mV/V |
Excitation Voltage | 5~15 (DC) |
Non-Linearity | 0.025 %FS |
Compensated Temp. | -10~+50 °C |
Hysteresis | 0.02 %FS |
Use Temp. | -20~+60 °C |
Repeatability | 0.02 / 0.01 %FS |
Temp. Effect on Span | 0.02 %FS |
Creep | 0.03 / 0.02 %FS |
Temp. Effect on Zero | 0.02 %FS |
Zero Balance | + 1.0 %FS |
Safe Overload | 120 %FS |
Input Impedance | 400 + 10 |
Ultimate Overload | 150 %FS |
