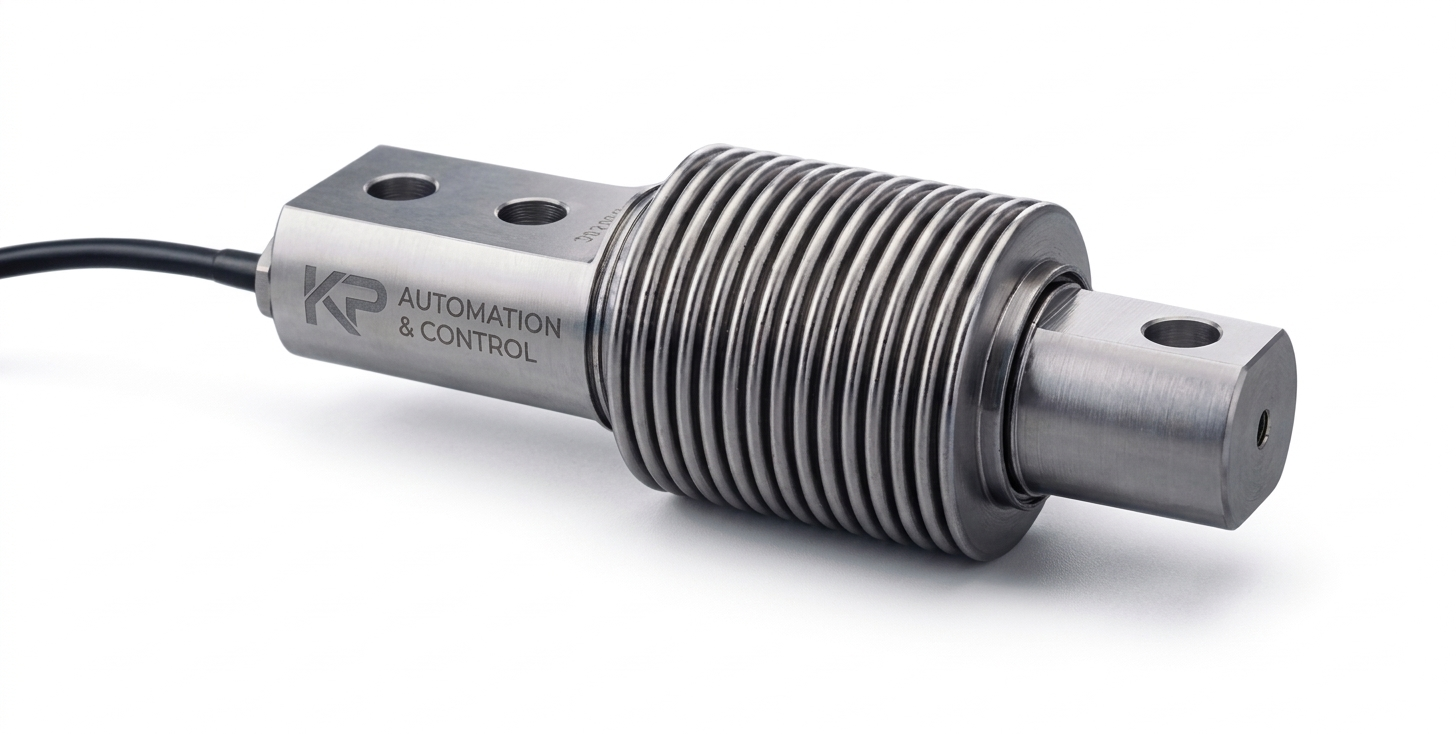

Bending Beam Load Cells
20, 50, 100, 200 | OIML R60 C3 | Small Hopper-Tank
₹2200.00
Bending Beam Load Cells are designed for accurate weight and force measurement in small hopper, tank, and industrial process systems. They offer hermetically sealed protection, high precision, and stable long-term performance for Ahmedabad, Gandhinagar, and nearby industrial applications.
Parameter | Value |
|---|---|
Product Name | Bending Beam Load Cells |
Model Name/Number | Bending Beam Load Cells |
Brand | KP Control and Automation |
Capacity | 20,50,100,200 |
Accuracy Class | OIML R60 C3 |
Original Mentioned Model | KP-901 |
Type | Bending Beam |
Material | Stainless Steel |
Ingress Protection | IP68 |
Application | Small Hopper-Tank |
Features | Hermetically sealed, High Accuracy & Precision |
Output Sensitivity(FS) | 2.0 +/- 0.002 mV/V |
Combined Error | 0.001% |
Creep Error (30 minutes) | 0.001% |
Temperature Effect on Zero | 0.001% |
Zero balance | +/- 1% FS |
Maximum Safe Overload | 120% FS |
Ultimate Safe Overload | 180% FS |
Recommended Excitation Voltage | 9 to 12V DC |
Maximum Excitation Voltage | 15V DC |
Input Resistance | 390 |
Output Resistance | 350 |
Insulation resistance at 50V DC | >= 10 G Ohm |
Compensated Temperature Range | -30 to +70 Deg C |
Operating Temperatue Range | -10 to +40 Deg C |
Load Cell Intervals (nLC)/Divisions | 4000 |
Cable Length | 3 mtr |
Parameter | Value |
|---|---|
Rated Load (KG) | 10, 20, 30, 50, 100, 200, 300, 500 |
Precision | C2/C3 |
Output Impedance(Ω) | 350 + 5 |
Composition Error | 0.03/0.02 |
Insulation (MΩ) | > 20000 |
Rated Output (mv/v) | 2.0 + 0.001 |
Excitation Voltage(V) | 5~15(DC) |
Non-Linearity (%FS) | 0.025 |
Compensated Temp.(˚C) | -10~+50 |
Hysteresis (%FS) | 0.02 |
Use Temp. (˚C) | -20~+60 |
Repeatability (%FS) | 0.02/0.01 |
Temp. Effect on Span(%FS) | 0.02 |
Creep (%FS) | 0.03/0.02 |
Temp. Effect on Zero(%FS) | 0.02 |
Zero Balance (%FS) | + 1.0 |
Safe Overload(%FS) | 120 |
Input Impedance(Ω) | 400 + 10 |
Ultimate Overload(%FS) | 150 |
