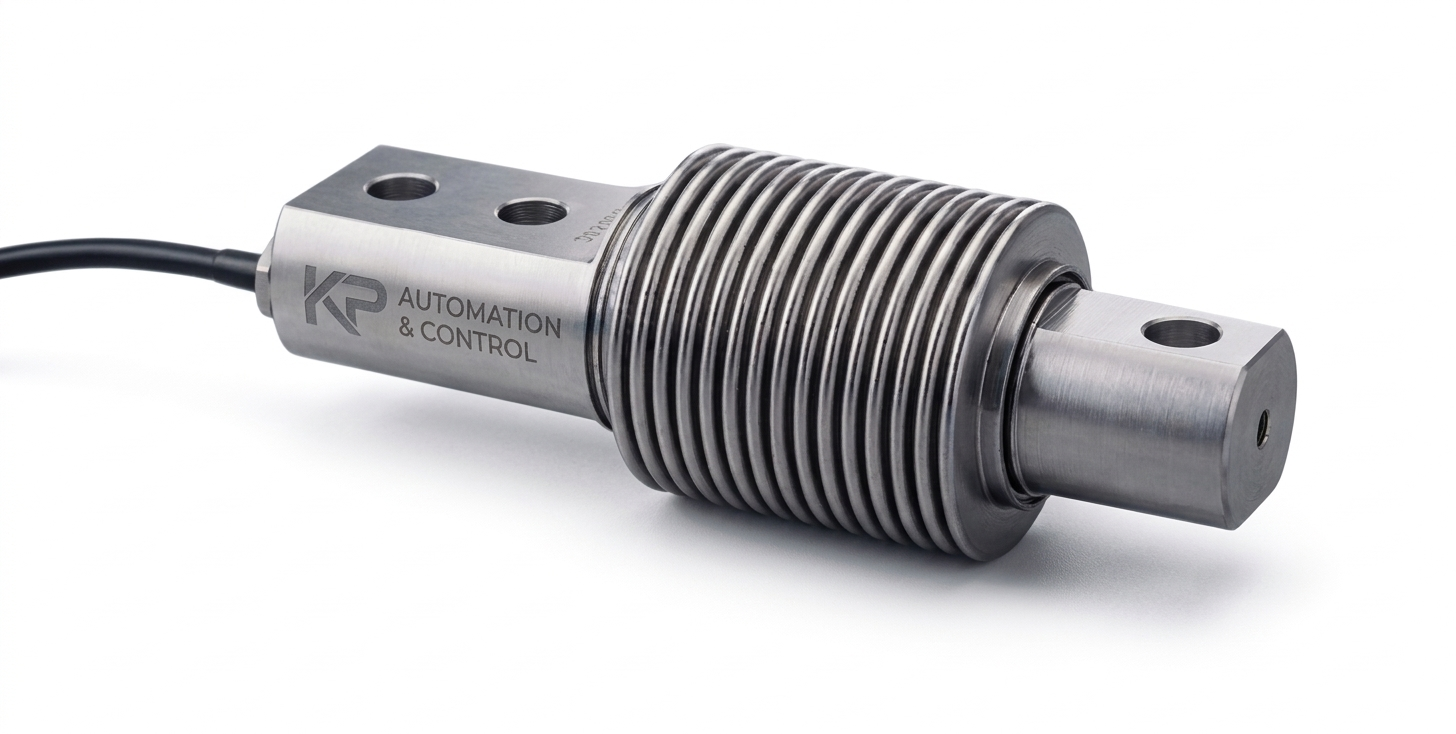

Bending Beam Type Load Cell
5kg | Compression | Stainless Steel
₹3200.00
Bending Beam Type Load Cell is a durable and accurate sensor for industrial weighing, platform scales, and automation systems. It delivers stable output, dependable performance, and long-term reliability for precision load monitoring in Ahmedabad, Gandhinagar, and nearby industries.
Parameter | Value |
|---|---|
Product Name | Bending Beam Type Load Cell |
Model Name/Number | Bending Beam Type Load Cell |
Brand | KP Control and Automation |
Load Capacity | 5kg |
Type | Compression |
Material | Stainless Steel |
Cable Length | 2m |
Weight | 2 Kg |
Parameter | Value |
|---|---|
Rated Load (KG) | 10, 20, 30, 50, 100, 200, 300, 500 |
Precision | C2/C3 |
Output Impedance | 350 ± 5 Ω |
Composition Error | 0.03 / 0.02 |
Insulation | > 20000 MΩ |
Rated Output | 3.0 ± 0.2 mV/V |
Excitation Voltage | 5~15 VDC |
Non-Linearity | 0.025 %FS |
Compensated Temp. | -10 to +50 °C |
Hysteresis | 0.02 %FS |
Use Temp. | -20 to +60 °C |
Repeatability | 0.02 / 0.01 %FS |
Temp. Effect on Span | 0.02 %FS |
Creep | 0.03 / 0.02 %FS |
Temp. Effect on Zero | 0.02 %FS |
Zero Balance | ± 1.0 %FS |
Safe Overload | 120 %FS |
Input Impedance | 400 ± 10 Ω |
Ultimate Overload | 150 %FS |
