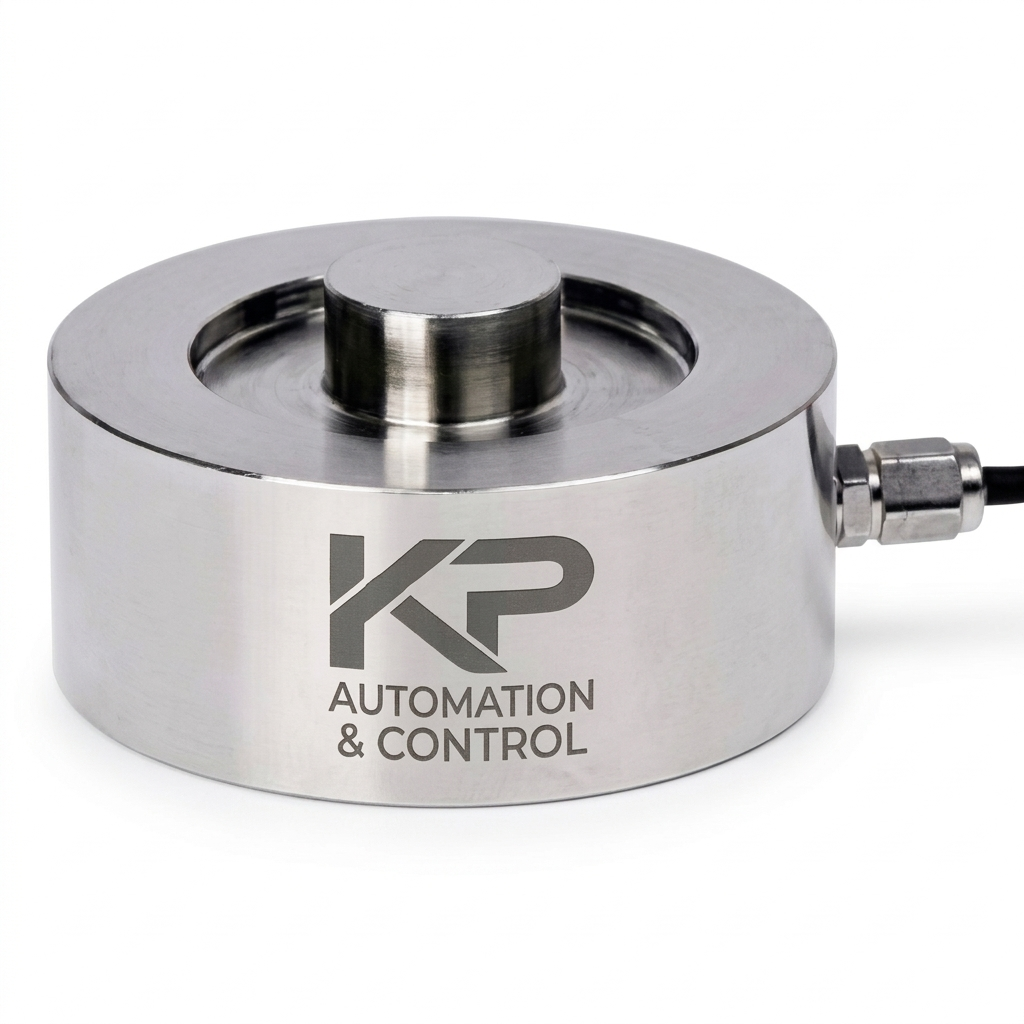

Button Load Cell
2.5 Ton to 30 Ton | Tank, Silo & Vessel Weighing | IP68
₹3500.00
Button Load Cell is a compact compression sensor for tank, silo, and vessel weighing applications that require high accuracy and sealed protection. It offers dependable output and reliable industrial performance for Ahmedabad, Gandhinagar, and nearby areas.
Parameter | Value |
|---|---|
Product Name | Button Load Cell |
Model Name/Number | Button Load Cell |
Brand | KP Control and Automation |
Capacity | 2.5 Ton- 30 Ton |
Material | Stainless Steel |
Accuracy Class | OIML R60 C3 |
Ingress Protection | IP68 |
Application | Tank, Silo & Vessel Weighing |
Original Mentioned Model | T20 |
Original Mentioned Brand | Thames |
Output Sensitivity(FS) | 2.0 +/- 0.1 mV/V |
Features | Hermetically Sealed, High Accuracy & Precision |
Creep Error (30 minutes) | <= +/- 0.05 |
Recommended Excitation Voltage | 10 to 12V DC |
Maximum Safe Overload | 150% FS |
Load Cell Certifications | OIML, ATEX |
Maximum Excitation Voltage | 15V DC |
Ultimate Safe Overload | 200% FS |
Operating Temperatue Range | -30 to +70 Deg C |
Combined Error | <= +/- 0.05 |
Temperature Effect on Zero | <= +/- 0.002 |
Temperature Effect on Output | <= +/- 0.0036 |
Zero balance | +/- 1% FS |
Cable Length | 10 Meter |
Output Resistance | 700 +/- 5 Ohm |
Input Resistance | 800 +/- 30 Ohm |
Insulation resistance at 50V DC | >= 5000 M Ohm |
Compensated Temperature Range | -10 to +40 Deg C |
Load Cell Intervals (nLC)/Divisions | 3000 |
Feature | Details |
|---|---|
Suitable For | Silo, Tank, Vessel Weighing |
Design | Low Profile, extremely compact loading assembly |
Structural Benefit | Allows Vessel expansion & contraction |
Facility | Integral Jacking Facility |
Accuracy | 1000 division accuracy |
Protection | Environmental Protection IP68 / IP69K |
Alignment | Allowance for Angular Mis-alignment |
