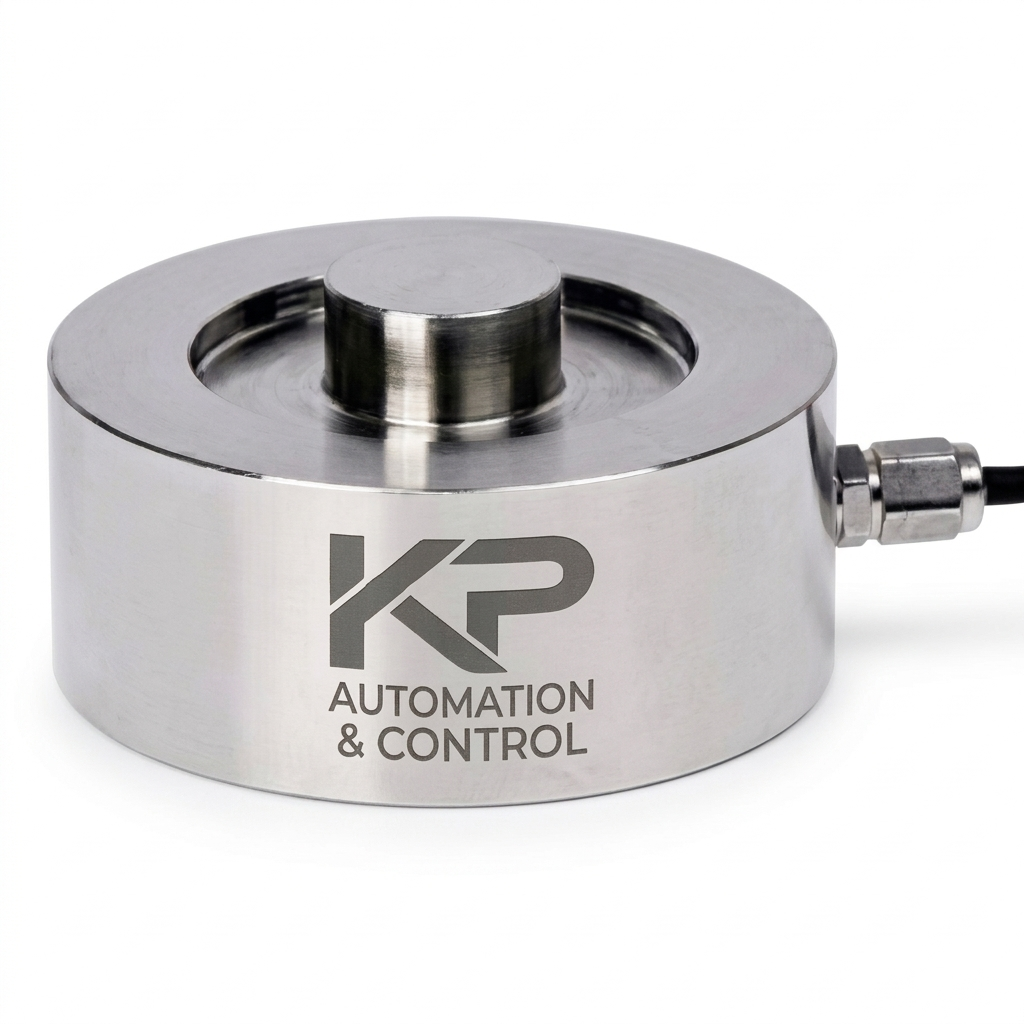

Button Load Cell 25 Ton
5 Ton | Silo & Tank Scale | IP68
₹3500.00
Button Load Cell is suitable for silo and tank scale applications where compact size, stable output, and reliable compression measurement are required. It is built for industrial weighing systems used across Ahmedabad, Gandhinagar, and nearby regions.
Parameter | Value |
|---|---|
Product Name | Button Load Cell 25 Ton |
Model Name/Number | Button Load Cell 25 Ton |
Brand | KP Control and Automation |
Capacity | 5 Ton |
Material | Alloy Steel |
Ingress Protection | IP68 |
Application | Silo & Tank Scale |
Original Mentioned Model | KP |
Minimum Order Quantity | 1 Piece |
Parameter | Value |
|---|---|
Rated Load (KG) | 100, 200, 300, 500, 750 |
Rated Load (T) | 1, 2, 2.5, 3, 5, 7.5, 10, 20 |
Precision | C2/C3 |
Output Impedance | 350 ± 5 Ω |
Composition Error | 0.03 / 0.02 |
Insulation | > 20000 MΩ |
Rated Output | 3.0 ± 0.2 mV/V |
Excitation Voltage | 5~15 VDC |
Non-Linearity | 0.025 %FS |
Compensated Temp. | -10~+50 °C |
Hysteresis | 0.02 %FS |
Use Temp. | -20~+60 °C |
Repeatability | 0.02 / 0.01 %FS |
Temp. Effect on Span | 0.02 %FS |
Creep | 0.03 / 0.02 %FS |
Temp. Effect on Zero | 0.02 %FS |
Zero Balance | ± 1.0 %FS |
Safe Overload | 120 %FS |
Input Impedance | 400 ± 10 Ω |
Ultimate Overload | 150 %FS |
