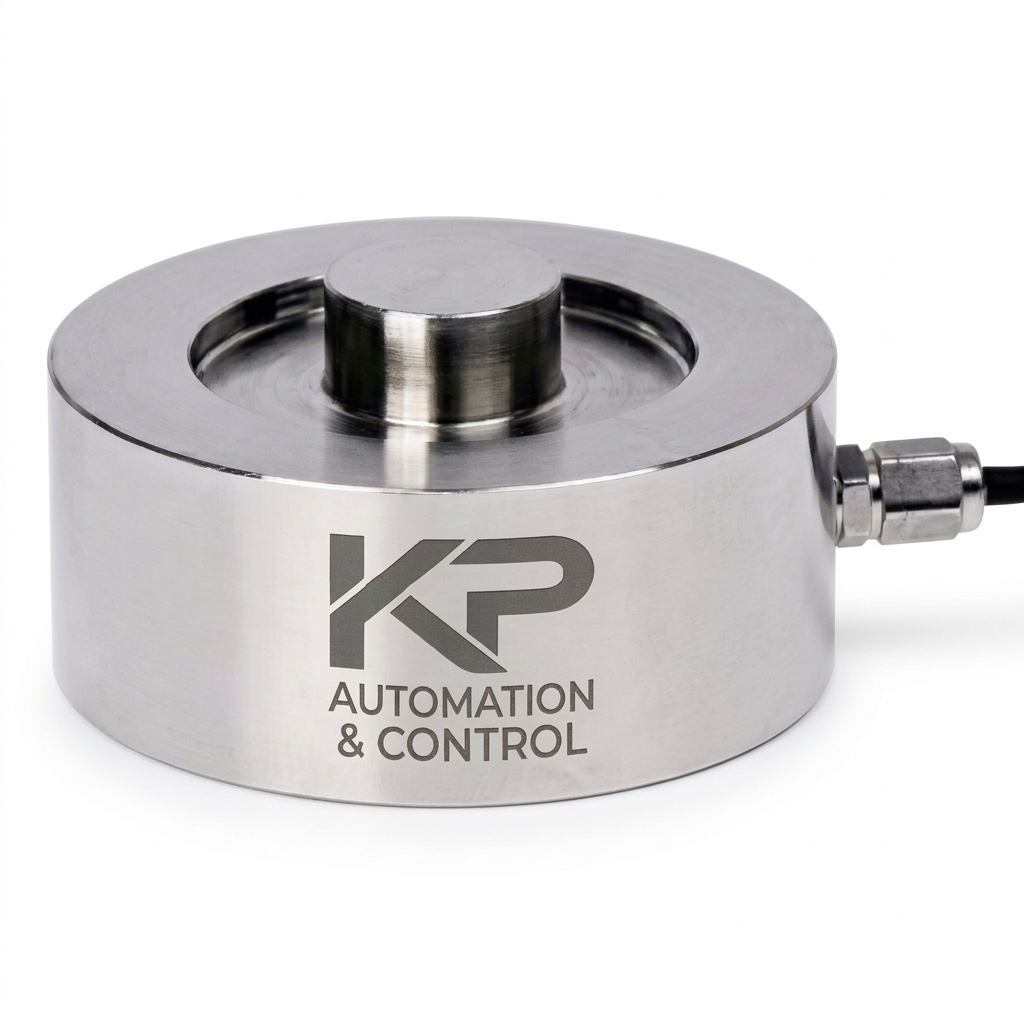

Button Load Cell
10 Ton | Alloy Steel | Silo & Tank Scale
₹3200.00
Button Load Cell is designed for compact compression measurement in silo and tank scale applications. It offers dependable performance, stable output, and durable industrial construction for Ahmedabad, Gandhinagar, and nearby industrial users.
Parameter | Value |
|---|---|
Product Name | Button Load Cell |
Model Name/Number | Button Load Cell |
Brand | KP Control and Automation |
Capacity | 10 Ton |
Material | Alloy Steel |
Ingress Protection | IP68 |
Application | Silo & Tank Scale |
Original Mentioned Model | kp |
Minimum Order Quantity | 1 Piece |
Parameter | Value |
|---|---|
Rated Load (KG) | 100, 200, 300, 500, 750 |
Rated Load (T) | 1, 2, 2.5, 3, 5, 7.5, 10, 20 |
Precision | C2/C3 |
Output Impedance | 350 ± 5 Ω |
Composition Error | 0.03/0.02 |
Insulation | > 20000 MΩ |
Rated Output | 3.0 ± 0.2 mV/V |
Excitation Voltage | 5~15 VDC |
Non-Linearity | 0.025 %FS |
Compensated Temp. | -10~+50 °C |
Hysteresis | 0.02 %FS |
Use Temp. | -20~+60 °C |
Repeatability | 0.02/0.01 %FS |
Temp. Effect on Span | 0.02 %FS |
Creep | 0.03/0.02 %FS |
Temp. Effect on Zero | 0.02 %FS |
Zero Balance | ± 1.0 %FS |
Safe Overload | 120 %FS |
Input Impedance | 400 ± 10 Ω |
Ultimate Overload | 150 %FS |
