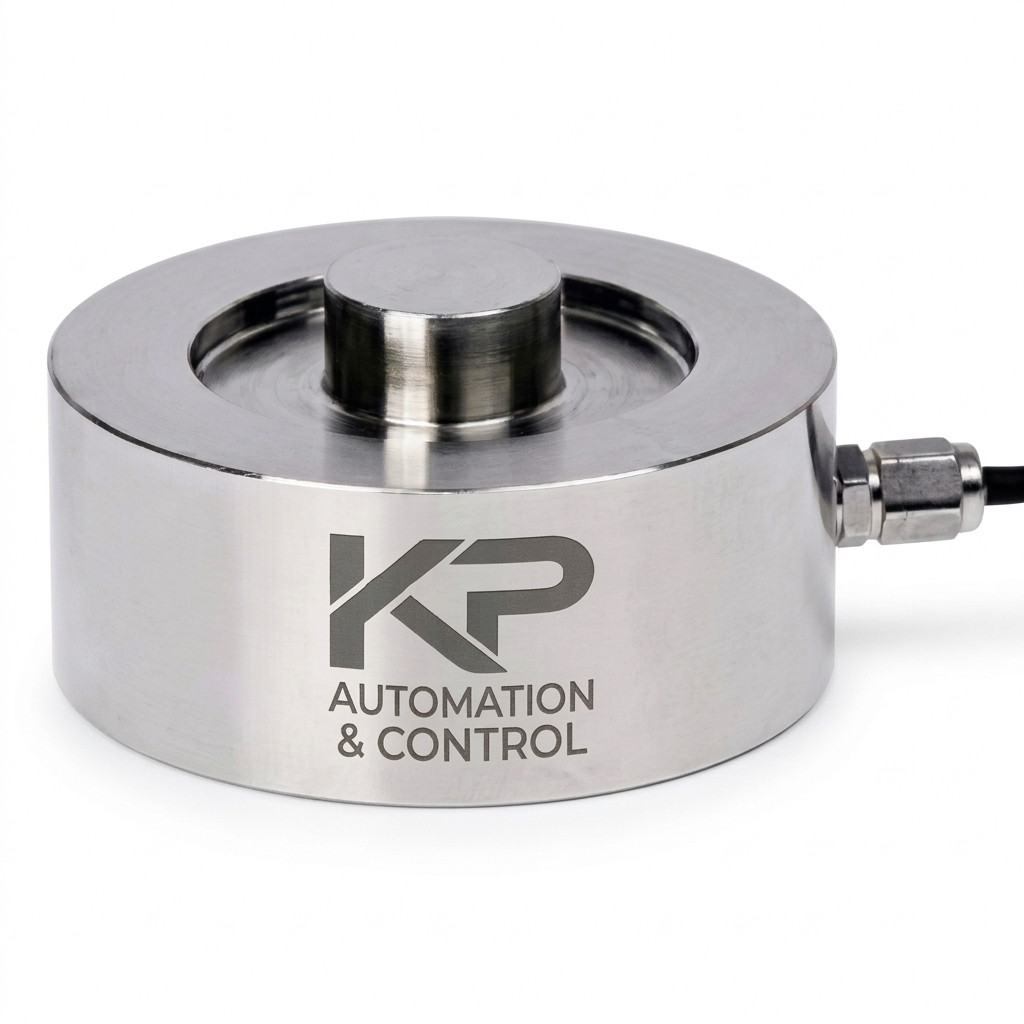

Button Type Load Cell
10 Ton | Compression | Silo & Tank Scale
₹2500.00
Button Type Load Cell is a compact industrial sensor for compression force measurement in silo, tank scale, automation, and testing systems. It offers stable output, dependable performance, and durable use for Ahmedabad, Gandhinagar, and nearby industrial applications.
Parameter | Value |
|---|---|
Product Name | Button Type Load Cell |
Model Name/Number | Button Type Load Cell |
Brand | KP Control and Automation |
Capacity | 10 Ton |
Load Type | Compression |
Accuracy Class | 0.05% |
Material | Alloy Steel |
Ingress Protection | IP68 |
Application | Silo & Tank Scale |
Original Mentioned Model | kp |
Minimum Order Quantity | 1 Piece |
Parameter | Value |
|---|---|
Rated Load (KG) | 100, 200, 300, 500, 750 |
Rated Load (T) | 1, 2, 2.5, 3, 5, 7.5, 10, 20 |
Precision | C2/C3 |
Output Impedance | 350 ± 5 Ω |
Composition Error | 0.03/0.02 |
Insulation | > 20000 MΩ |
Rated Output | 3.0 ± 0.2 mV/V |
Excitation Voltage | 5~15 VDC |
Non-Linearity | 0.025 %FS |
Compensated Temp. | -10~+50 °C |
Hysteresis | 0.02 %FS |
Use Temp. | -20~+60 °C |
Repeatability | 0.02/0.01 %FS |
Temp. Effect on Span | 0.02 %FS |
Creep | 0.03/0.02 %FS |
Temp. Effect on Zero | 0.02 %FS |
Zero Balance | ± 1.0 %FS |
Safe Overload | 120 %FS |
Input Impedance | 400 ± 10 Ω |
Ultimate Overload | 150 %FS |
