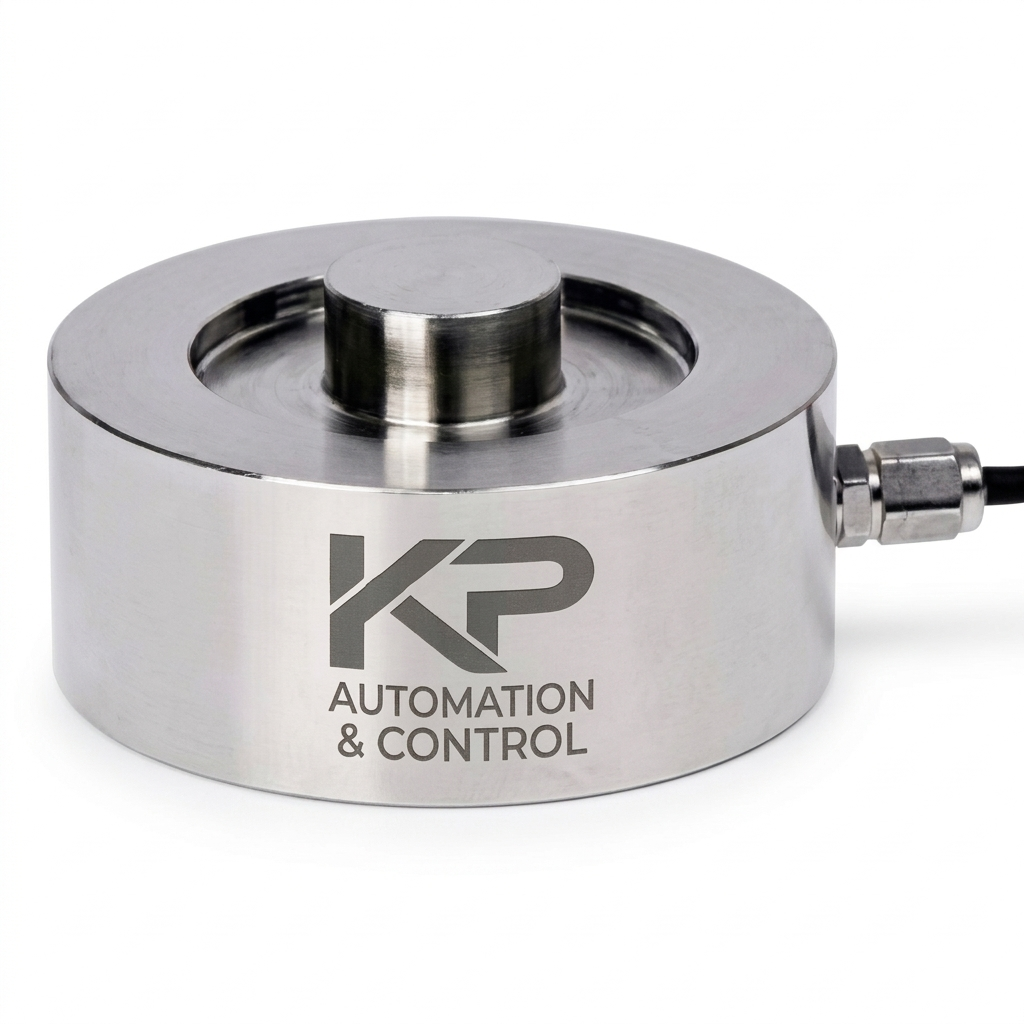

Button Type Load Cell
Compact Compression Type | High Accuracy | Industrial
₹3500.00
Button Type Load Cell is designed for compact compression force measurement in industrial automation, testing equipment, and weighing systems where installation space is limited. It offers stable output, dependable accuracy, and reliable daily performance for Ahmedabad, Gandhinagar, and nearby industrial users.
Parameter | Value |
|---|---|
Product Name | Button Type Load Cell |
Model Name/Number | Button Type Load Cell |
Brand | KP Control and Automation |
Product Type | Compression Load Cell |
Application | Industrial automation, testing equipment, weighing systems |
Performance | High accuracy, stable output, reliable performance |
Parameter | Value |
|---|---|
Rated Load (KG) | 100, 200, 300, 500, 750 |
Rated Load (T) | 1, 2, 2.5, 3, 5, 7.5, 10, 20 |
Precision | C2/C3 |
Output Impedance(Ω) | 350 + 5 |
Composition Error | 0.03/0.02 |
Insulation (MΩ) | > 20000 |
Rated Output (mV/V) | 3.0 + 0.2 |
Excitation Voltage (V) | 5~15 (DC) |
Non-Linearity (%FS) | 0.025 |
Compensated Temp. (˚C) | -10~+50 |
Hysteresis (%FS) | 0.02 |
Use Temp. (˚C) | -20~+60 |
Repeatability (%FS) | 0.02/0.01 |
Temp. Effect on Span (%FS) | 0.02 |
Creep (%FS) | 0.03/0.02 |
Temp. Effect on Zero (%FS) | 0.02 |
Zero Balance (%FS) | + 1.0 |
Safe Overload (%FS) | 120 |
Input Impedance(Ω) | 400 + 10 |
Ultimate Overload (%FS) | 150 |
