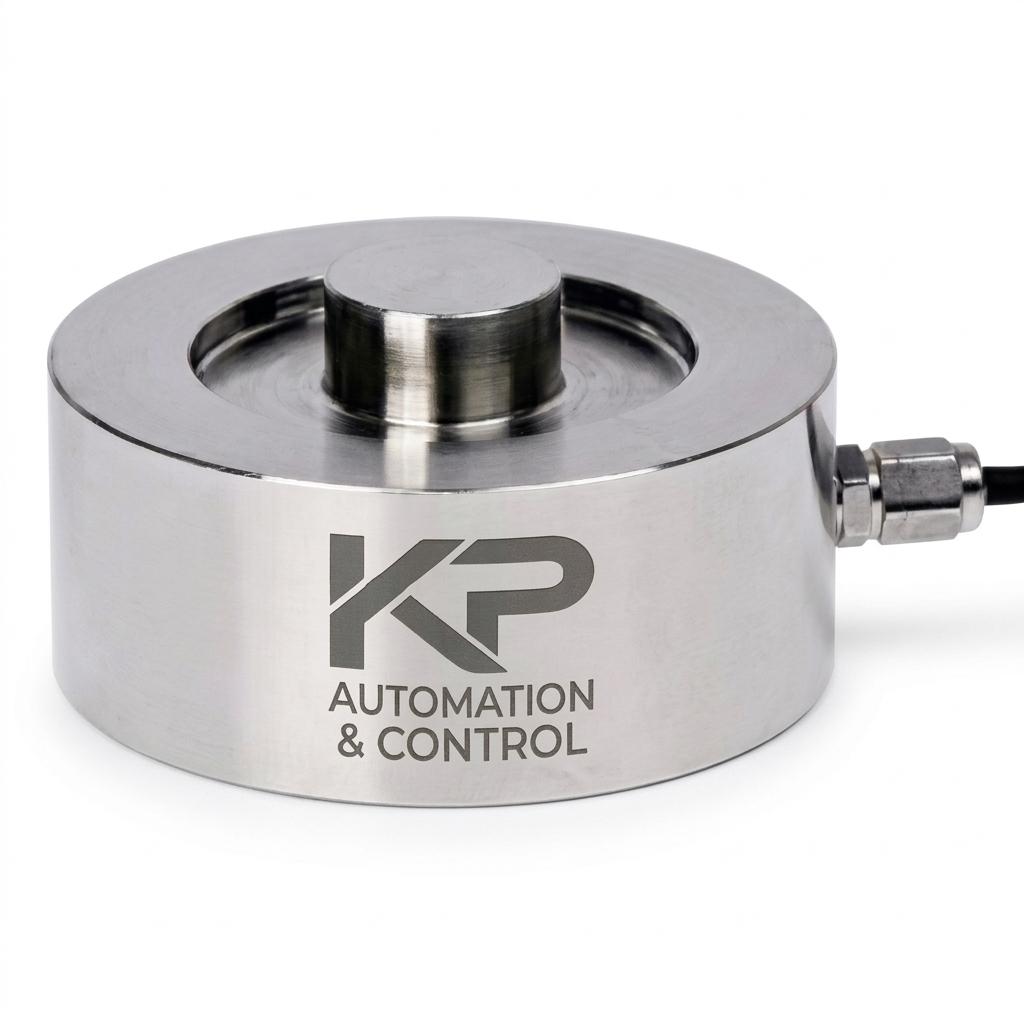

Button type loadcell
50 - 5000 Kg | Suspended Hoppers | IP68
₹3000.00
Button type loadcell is designed for compact and accurate compression measurement in suspended hoppers and industrial weighing systems. It offers stable output, high precision, and durable performance for Ahmedabad, Gandhinagar, and nearby industrial applications.
Parameter | Value |
|---|---|
Product Name | Button type loadcell |
Model Name/Number | Button type loadcell |
Brand | KP Control and Automation |
Capacity | 50 - 5000 Kg |
Ingress Protection | IP68 |
Application | Suspended Hoppers |
Original Mentioned Model | KP-606 |
Material | Alloy Steel |
Output Sensitivity(FS) | 2.0 +/- 0.002 mV/V |
Features | High Accuracy & Precision |
Recommended Excitation Voltage | 5 to 15V DC |
Maximum Excitation Voltage | 15V DC |
Maximum Safe Overload | 150% FS |
Ultimate Safe Overload | 180% FS |
Temperature Effect on Output | 0.001%FS/DegC |
Temperature Effect on Zero | 0.001% FS/DegC |
Zero balance | +/- 1% FS |
Accuracy Class | OIML R60 C3 |
Cable Length | 1- 20 meter |
Insulation resistance at 50V DC | >= 1000 M Ohm |
Compensated Temperature Range | -10 to +40 Deg C |
Parameter | Value |
|---|---|
Suitable For | Suspended Hoppers |
Capacity Range Mentioned | 5kg to 300T |
Performance | Stable output, reliable performance, long-term durability |
Installation | Easy to install and integrate |
