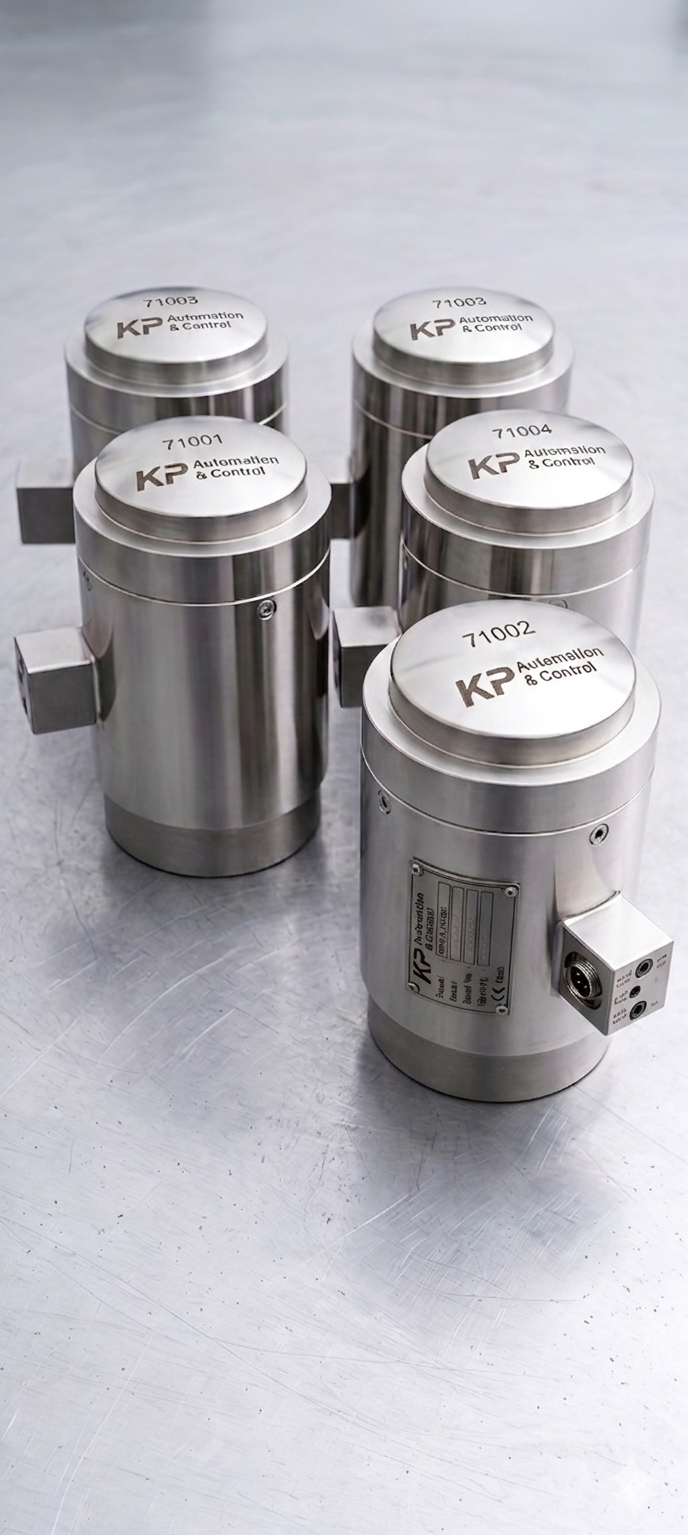

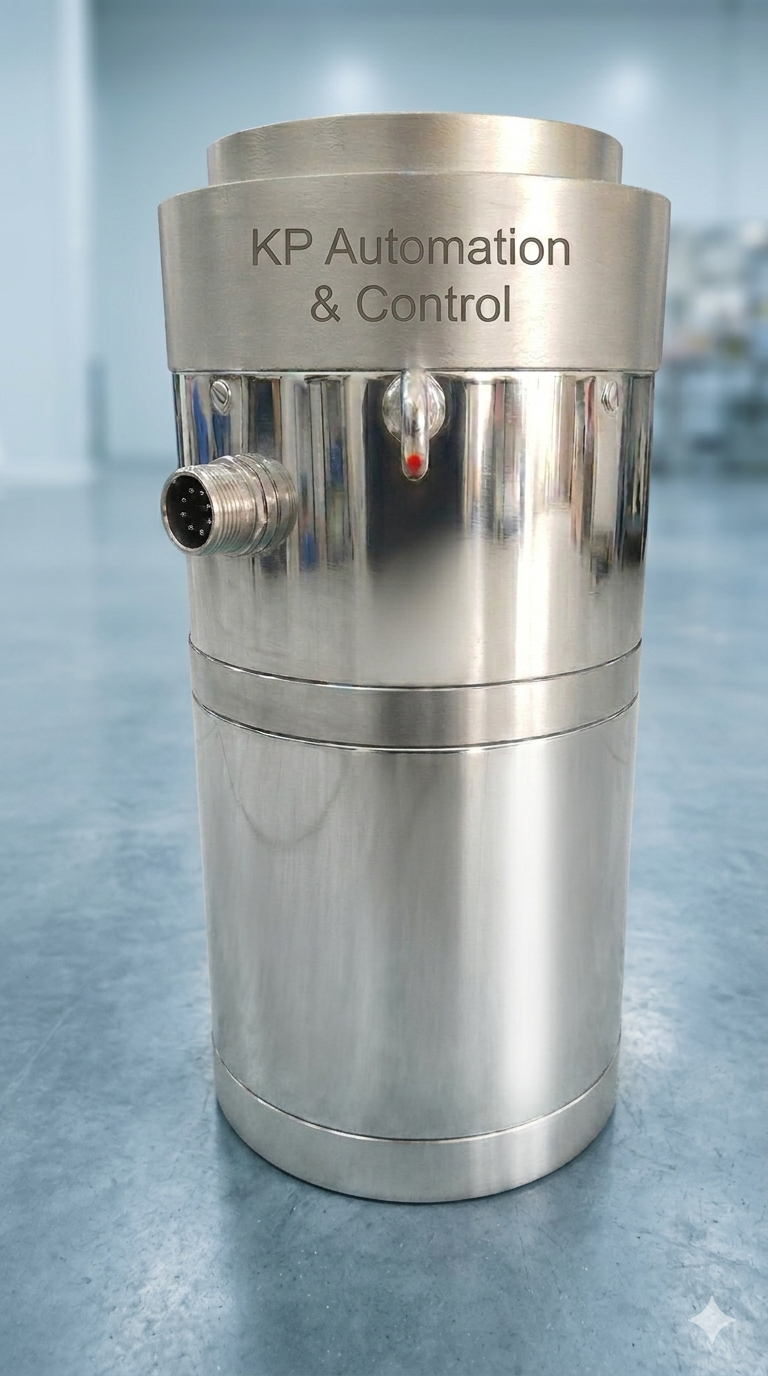

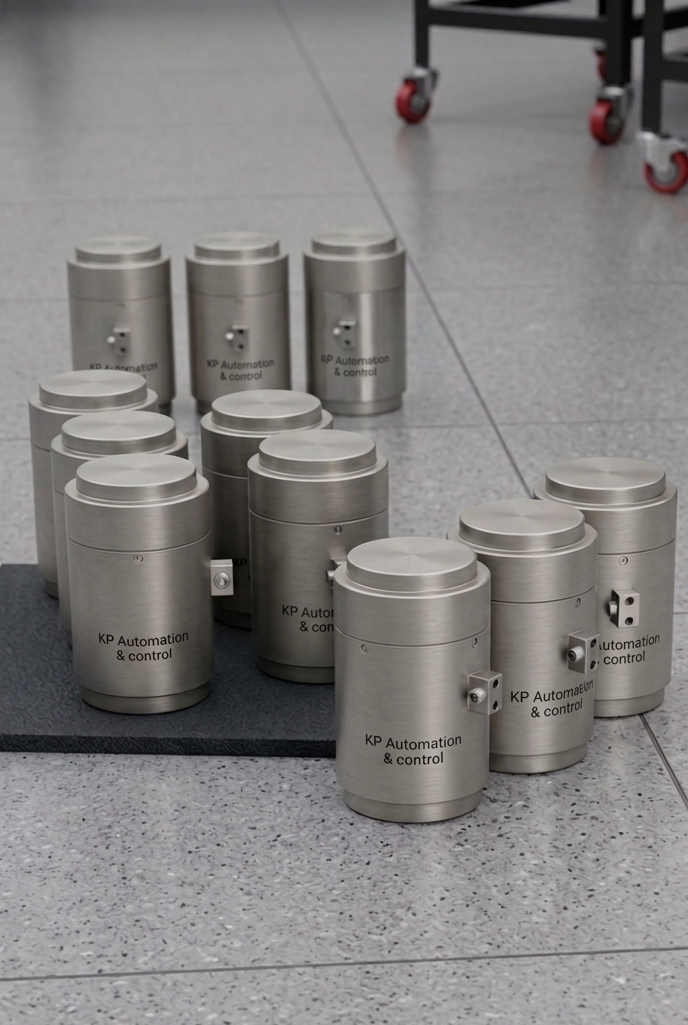

Compression Column Load Cell T34
40 Ton | Silo & Tank Scale | Stainless Steel
₹2500.00
Compression Column Load Cell T34 is built for silo and tank scale applications where accurate high-capacity compression sensing and sealed durability are important. It is suitable for Ahmedabad, Gandhinagar, and nearby industrial projects.
Parameter | Value |
|---|---|
Product Name | Compression Column Load Cell T34 |
Model Name/Number | Compression Column Load Cell T34 |
Brand | KP Control and Automation |
Capacity | 40 Ton |
Original Mentioned Brand | ADI |
Ingress Protection | IP64 |
Application | Silo & Tank Scale |
Material | Stainless Steel |
Features | Hermetically Sealed |
Load Cell Certifications | OIML |
Parameter | Value |
|---|---|
Capacity Options | 10 ton, 15 ton, 20 ton, 30 ton, 40 ton, 50 ton, 60 ton, 100 ton, 200 ton, 400 ton, 600 ton, 800 ton, 1000 ton |
Rated Output | 2.0 ± 0.5% mV/V |
Accuracy Class | 4000 - n. OIML |
Recommended Supply Voltage | 5-15 V |
Maximum Supply Voltage | 15 V |
Safe Overload | 150 % |
Combined Error | < ±0.013 or < ±0.05% |
Non-Repeatability | < ±0.015% |
Output at Zero Load | ±2.0 |
Input Resistance | 800 Ω ± 5 |
Output Resistance | 705 Ω ± 5 |
Operational Temperature Range | -50 to +70 °C |
Compensated Temperature Range | 0 to +50 °C |
Temperature Coefficient on Zero | < ±0.002 % / °C |
Temperature Coefficient on Span | < ±0.0012 % / °C or < ±0.0036 % / °C |
Creep Error (30 minutes) | < ±0.012 % or < ±0.048 % |
Environmental Protection | IP68 / IP69k |
Cable Length | 20 m |
Cable Material | Polyurethane |
Insulation Resistance | >5000 MΩ @100DC |
