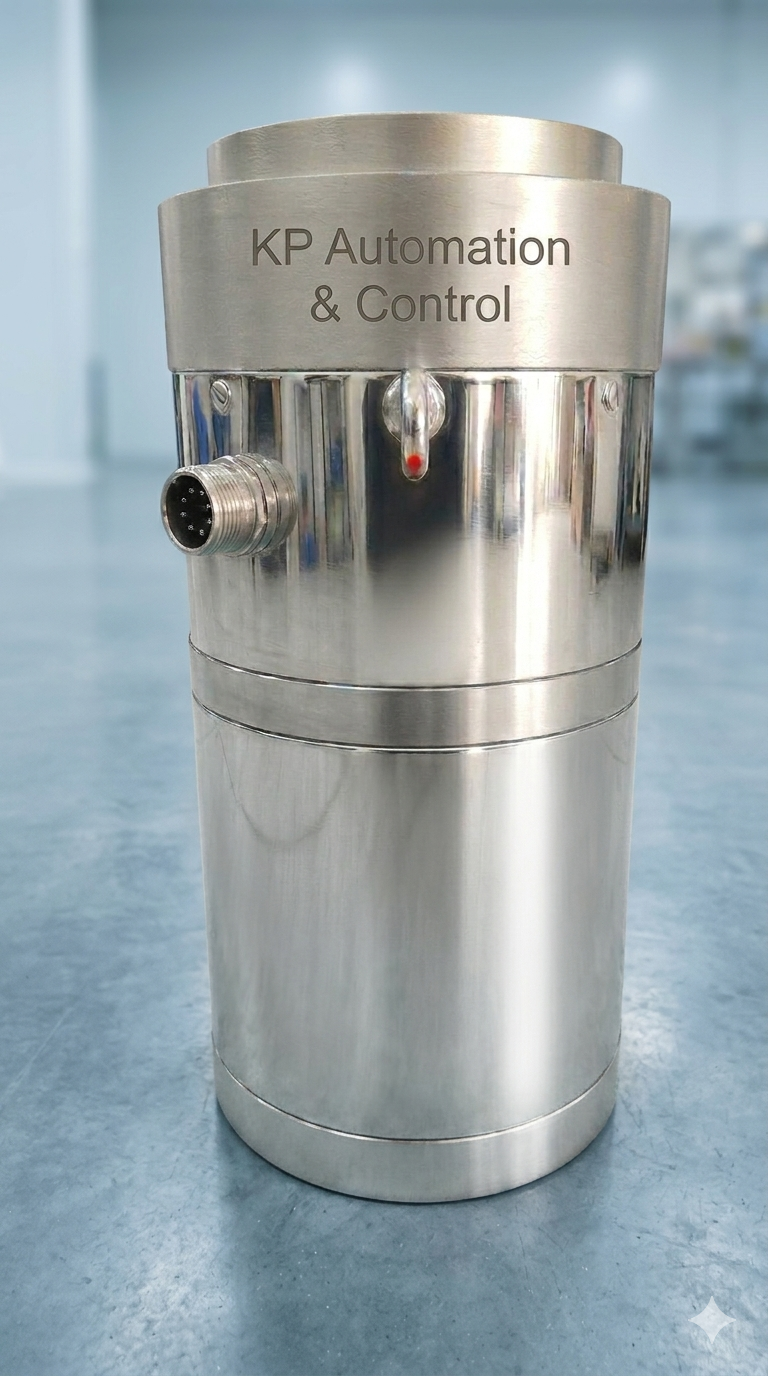

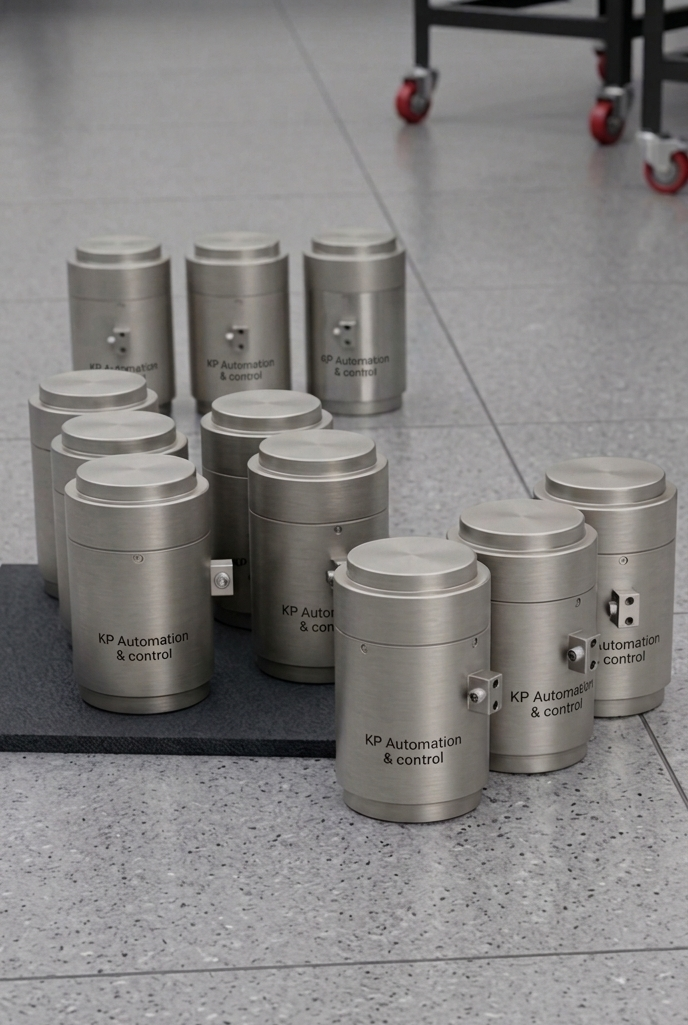

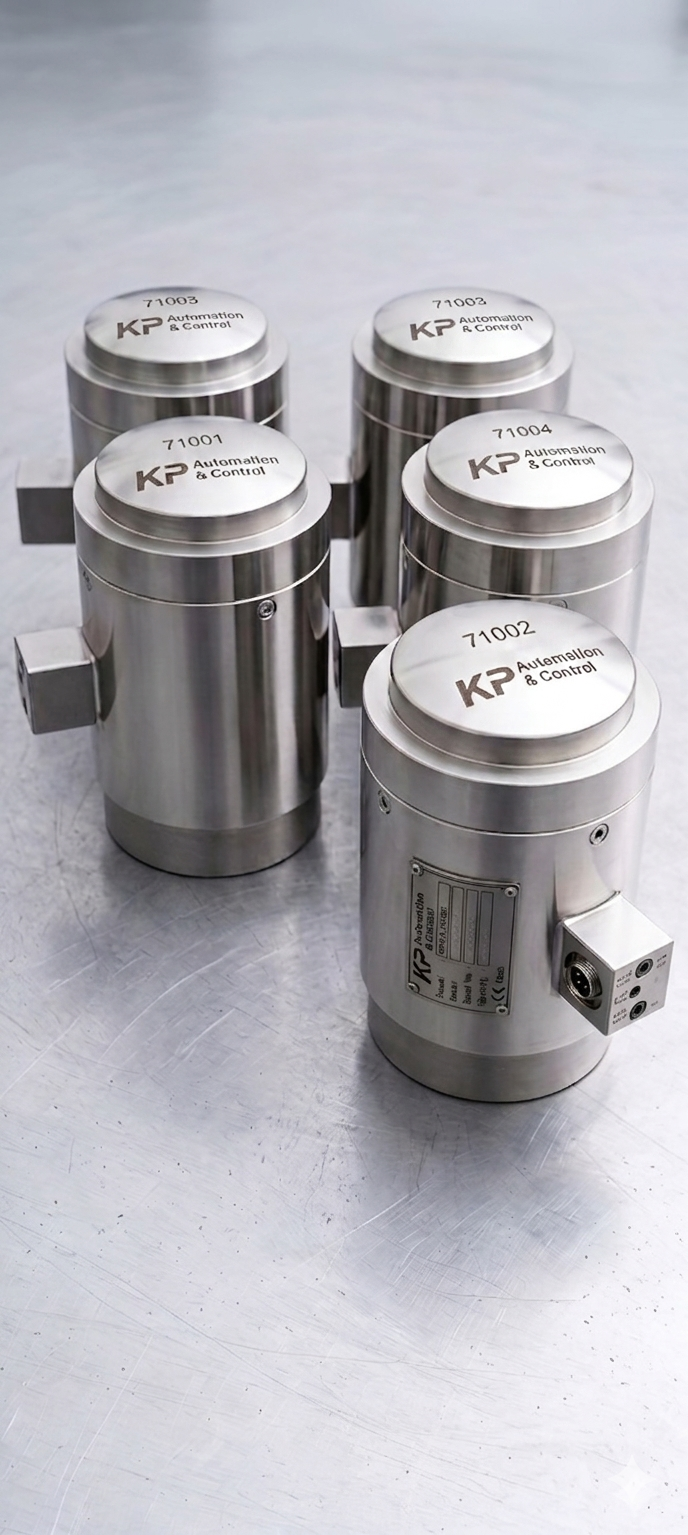

Compression Load Cell
7.5 Ton to 300 Ton | Stainless Steel | Silo & Tank Scale
₹2500.00
Compression Load Cell is built for high-capacity force measurement in silo, tank scale, weighbridge, and industrial automation applications. It offers stainless steel construction, high accuracy, and dependable long-term performance for Ahmedabad, Gandhinagar, and nearby industrial users.
Parameter | Value |
|---|---|
Product Name | Compression Load Cell |
Model Name/Number | Compression Load Cell |
Brand | KP Control and Automation |
Capacity | 7.5 Ton- 300 Ton |
Original Mentioned Brand | Flintec |
Material | Stainless Steel |
Ingress Protection | IP68 |
Application | Silo & Tank Scale |
Original Mentioned Model | RC3 |
Features | High Accuracy & Precision |
Load Cell Certifications | ATEX, NTEP, OIML |
Output Sensitivity(FS) | 2.0 +/-0.1 mV/V |
Combined Error | <= +/- 0.0200 |
Creep Error (30 minutes) | <= +/- 0.0166 |
Accuracy Class | OIML R60 C3 |
Temperature Effect on Zero | <= +/- 0.0093 |
Temperature Effect on Output | <= +/- 0.0100 |
Zero balance | +/- 5% FS |
Maximum Safe Overload | 200% FS |
Ultimate Safe Overload | 300% FS |
Recommended Excitation Voltage | 5 to 15V DC |
Maximum Excitation Voltage | 15V DC |
Input Resistance | 1150 +/- 50 Ohm |
Output Resistance | 1000 +/- 2 Ohm |
Insulation resistance at 50V DC | >= 5000 M Ohm |
Compensated Temperature Range | -10 to +40 Deg C |
Operating Temperatue Range | -35 to +65 Deg C |
Load Cell Intervals (nLC)/Divisions | 3000 |
Cable Length | 20 Meter |
Feature | Details |
|---|---|
Construction | Stainless Steel Construction |
Suitable For | Weighbridge & Tensile Testing |
Suitable For | Industrial Automation |
Design | Self-Restoring Design |
Protection | Environmental protection Class IP68 |
Mechanism | Provided with anti-rotation mechanism |
