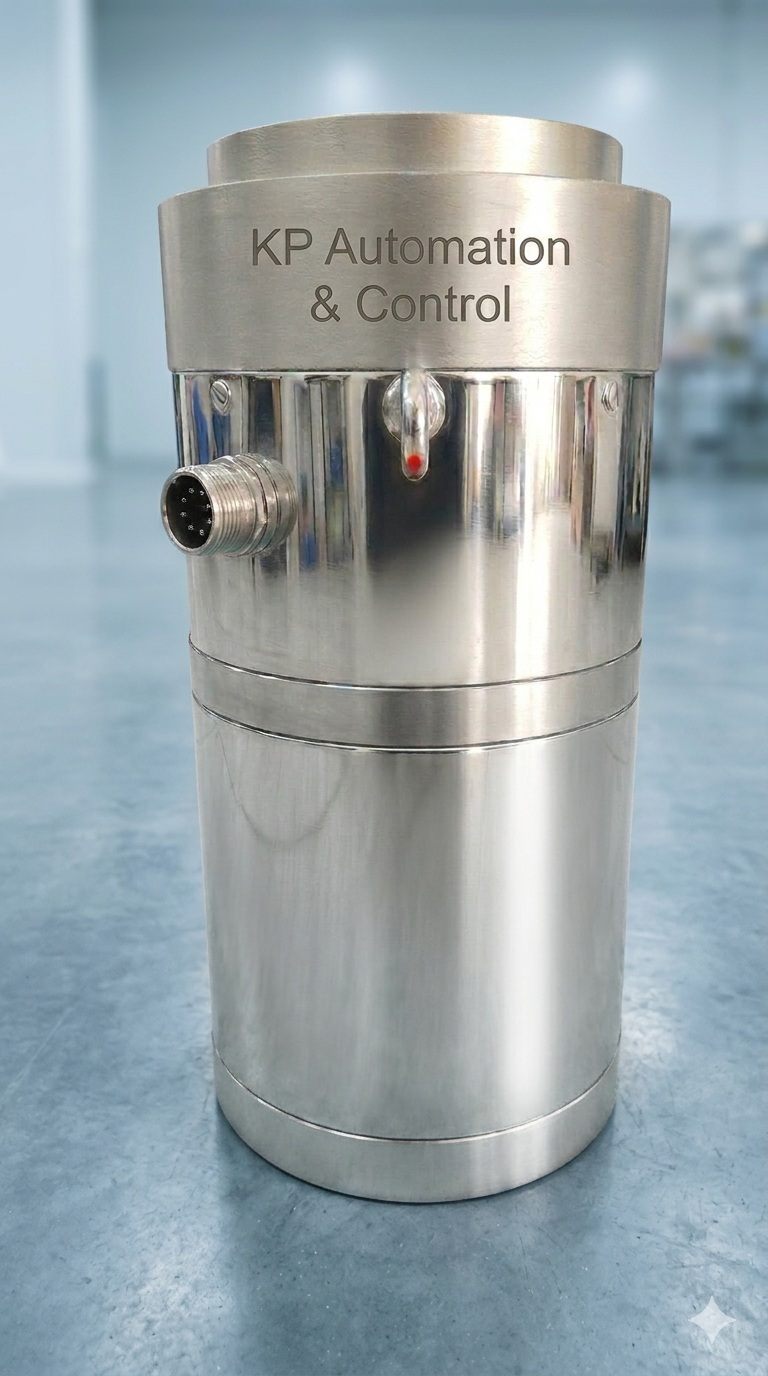

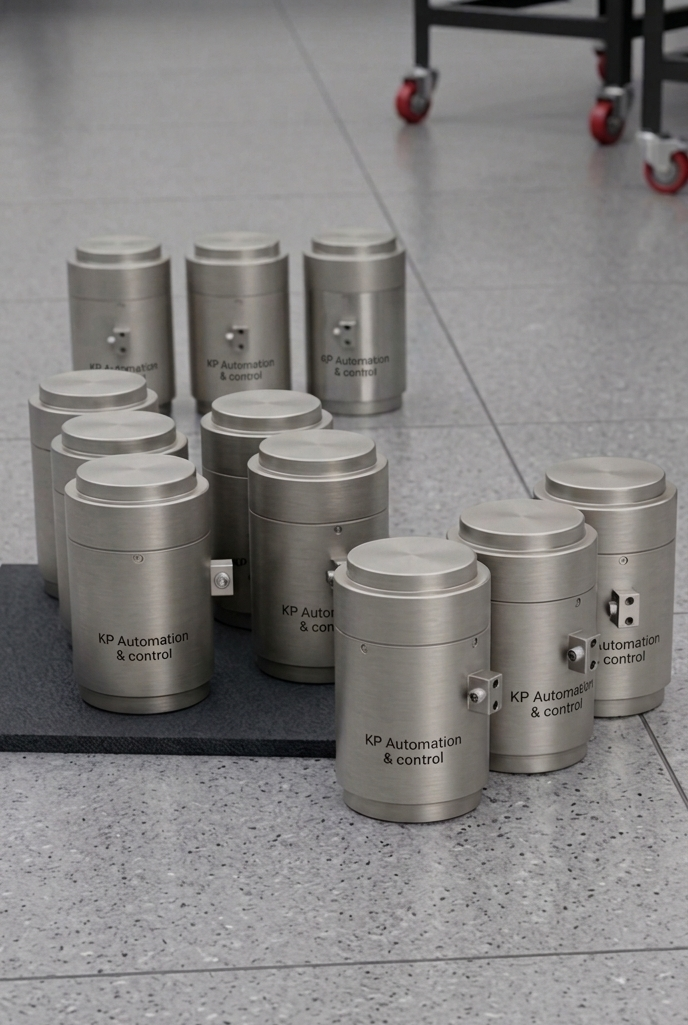

Digital Load Cell
200kg | Compression | Tank
₹2500.00
Digital Load Cell is designed for accurate weight and force measurement in tank weighing and industrial monitoring applications. It offers stable output, durable alloy steel construction, and dependable long-term performance for Ahmedabad, Gandhinagar, and nearby industrial users.
Parameter | Value |
|---|---|
Product Name | Digital Load Cell |
Model Name/Number | Digital Load Cell |
Brand | KP Control and Automation |
Load Capacity | 200kg |
Type | Compression |
Ingress Protection | IP68 |
Application | Tank |
Material | Alloy Steel |
Shape | Round |
Minimum Order Quantity | 1 Piece |
Parameter | Value |
|---|---|
Rated Load (T) | 0.5, 1, 2, 3, 5, 10, 15, 20, 30 |
Precision | C2/C3 |
Output Impedance(Ω) | 350 + 5 |
Composition Error | 0.03/0.02 |
Insulation (MΩ) | > 20000 |
Rated Output (mV/V) | 3.0 + 0.2 |
Excitation Voltage (V) | 5~15 (DC) |
Non-Linearity (%FS) | 0.025 |
Compensated Temp. (˚C) | -10~+50 |
Hysteresis (%FS) | 0.02 |
Use Temp. (˚C) | -20~+60 |
Repeatability (%FS) | 0.02/0.01 |
Temp. Effect on Span (%FS) | 0.02 |
Creep (%FS) | 0.03/0.02 |
Temp. Effect on Zero (%FS) | 0.02 |
Zero Balance (%FS) | + 1.0 |
Safe Overload (%FS) | 120 |
Input Impedance(Ω) | 400 + 10 |
Ultimate Overload (%FS) | 150 |
