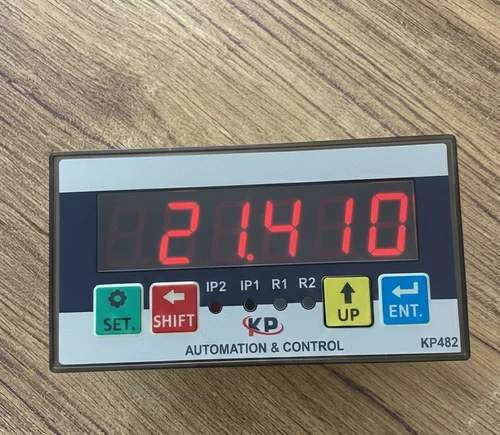

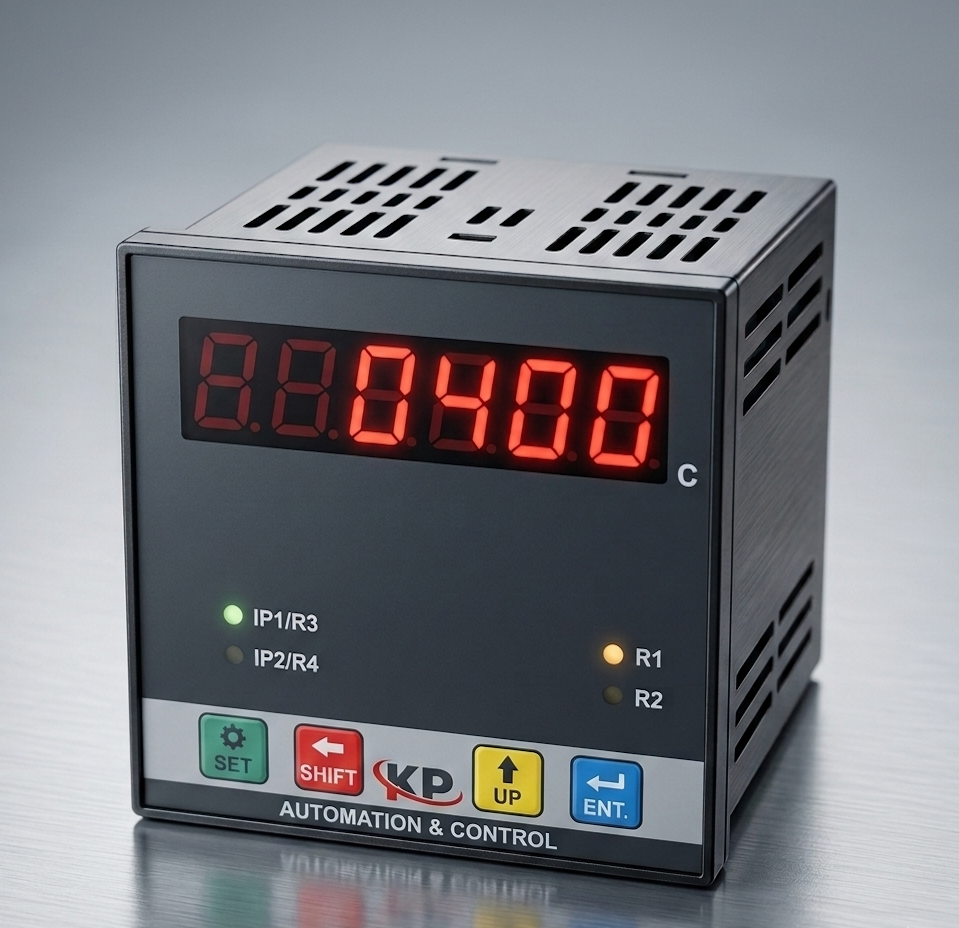

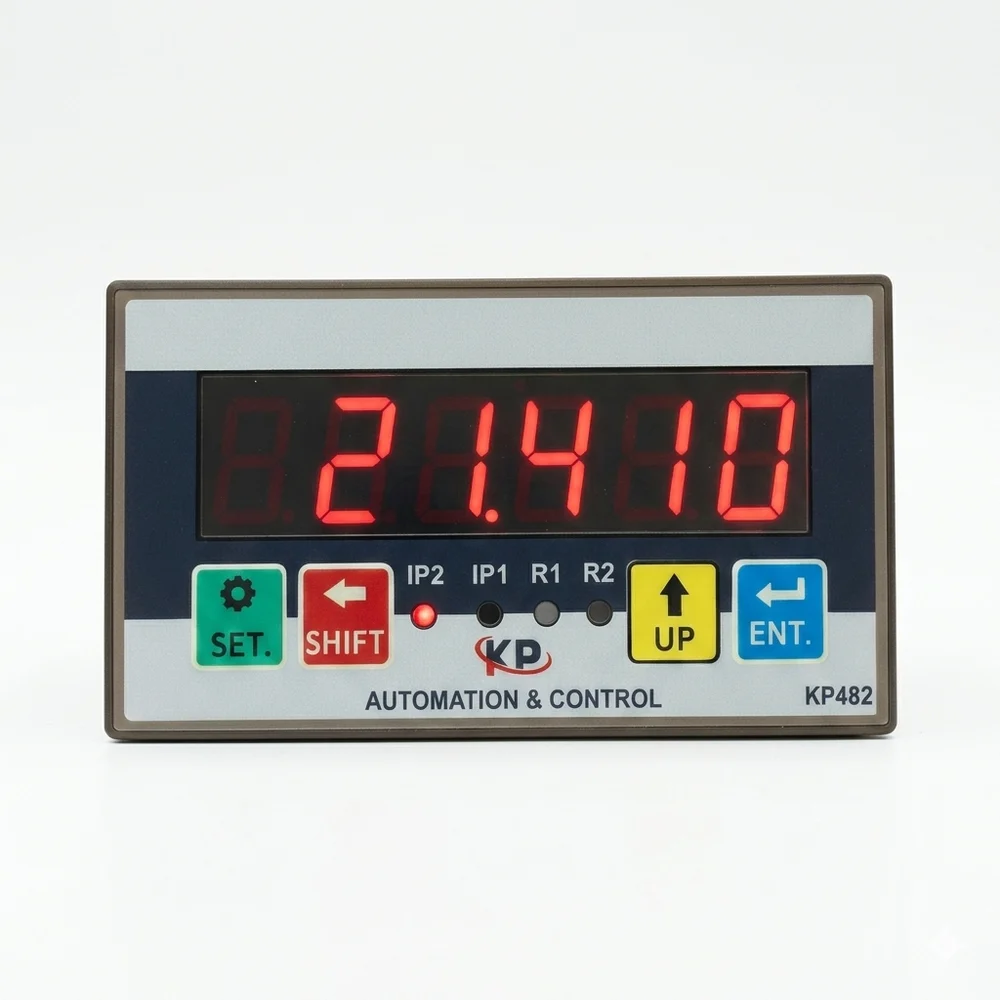

Load Cell Batch Controller
230 V or 24 V | Automatic | Digital
₹2500.00
Load Cell Batch Controller is designed for accurate batching and material dosing in industrial processes. It supports stable digital monitoring, automatic control, and dependable performance for Ahmedabad, Gandhinagar, and nearby industrial applications.
Parameter | Value |
|---|---|
Product Name | Load Cell Batch Controller |
Model Name/Number | Load Cell Batch Controller |
Brand | KP Control and Automation |
Display Type | digital |
Frequency | 50 Hz |
Voltage | 230 V or 24 V |
Type | Automatic |
Original Mentioned Brand | KP MAKE |
Original Mentioned Model | KP-230 |
Country of Origin | Made in India |
Feature | Details |
|---|---|
Display | 6 Digit Seven Segment Display |
Tare Facility | Manual / Auto Tare facility available |
Power Supply | 230 VAC 50 HZ |
Accuracy | 0.02 % of Full Scale accuracy |
Mounting | Easy to Panel Mount |
Calibration | Software calibration |
Controller Support | filling machine controller |
PLC Support | PLC through calibration also availabe |
Optional Parameter | Value |
|---|---|
Relay Setpoint | 4 Relay Setpoint |
Inputs | 3 Input |
Linear Output | 0-10volt DC or 4-20 ma DC |
Communication | RS485 modbus communication |
Size Options | 96mm×96mm / 48 mm x 96 mm / dinrail controller with display / dinrail analogue without display |
Quality | 100 % Quality Assurance Product |
Customization | We Also provide Customer to Customize Product . |
