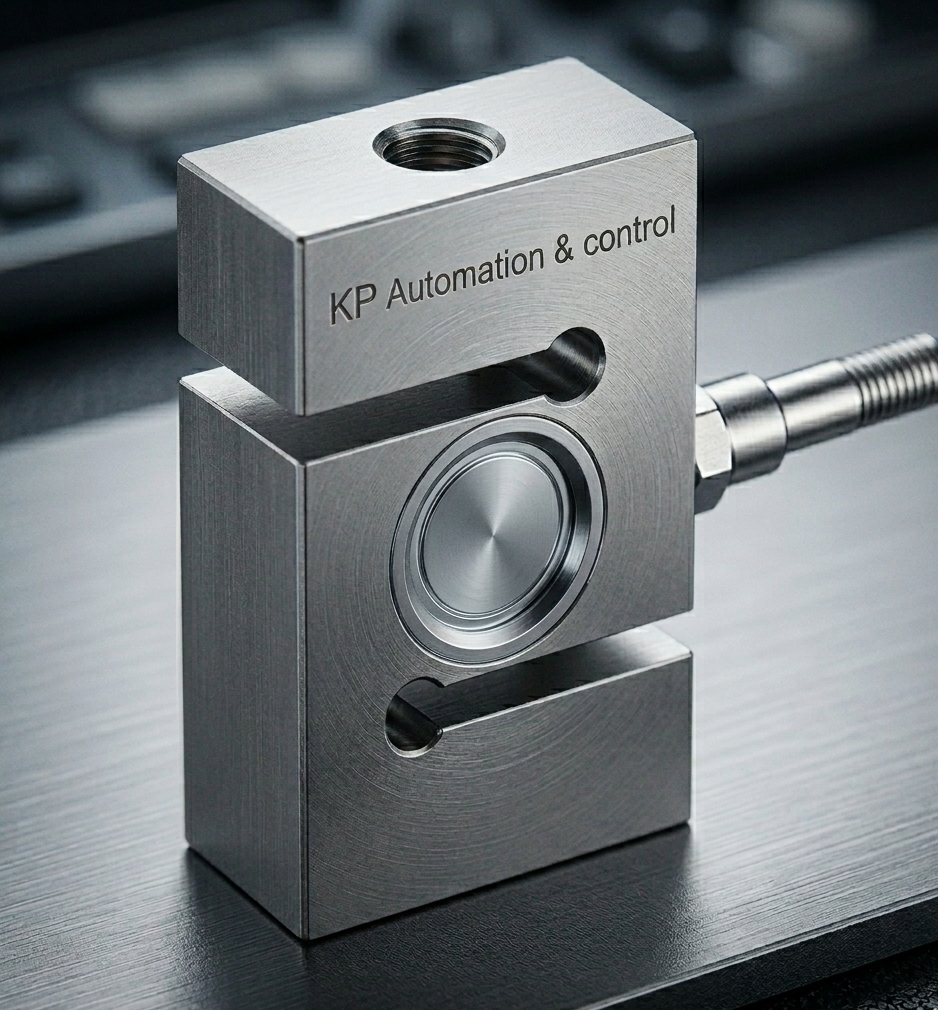

Load Cell S Type
5kg | Alloy Steel | IP68
₹2650.00
Load Cell S Type is designed for accurate load and force measurement in industrial weighing applications where compact design and stable output are important. It offers hermetically sealed protection and dependable performance for Ahmedabad, Gandhinagar, and nearby industrial users.
Parameter | Value |
|---|---|
Product Name | Load Cell S Type |
Model Name/Number | Load Cell S Type |
Brand | KP Control and Automation |
Load Capacity | 5kg |
Material | Alloy Steel |
Ingress Protection | IP68 |
Original Mentioned Model | KP-301 |
Features | Hermetically Sealed |
Cable Length | 3m |
Minimum Order Quantity | 1 Piece |
Parameter | Value |
|---|---|
Rated Load (KG) | 5 to 1100 |
Precision | C2/C3 |
Output Impedance | 350 + 5 |
Composition Error | 0.03 / 0.02 |
Insulation | > 20000 MΩ |
Rated Output | 3.0 + 0.2 mV/V |
Excitation Voltage | 5~15 (DC) |
Non-Linearity | 0.025 %FS |
Compensated Temp. | -10~+50 °C |
Hysteresis | 0.02 %FS |
Use Temp. | -20~+60 °C |
Repeatability | 0.02 / 0.01 %FS |
Temp. Effect on Span | 0.02 %FS |
Creep | 0.03 / 0.02 %FS |
Temp. Effect on Zero | 0.02 %FS |
Zero Balance | + 1.0 %FS |
Safe Overload | 120 %FS |
Input Impedance | 400 + 10 |
Ultimate Overload | 150 %FS |
