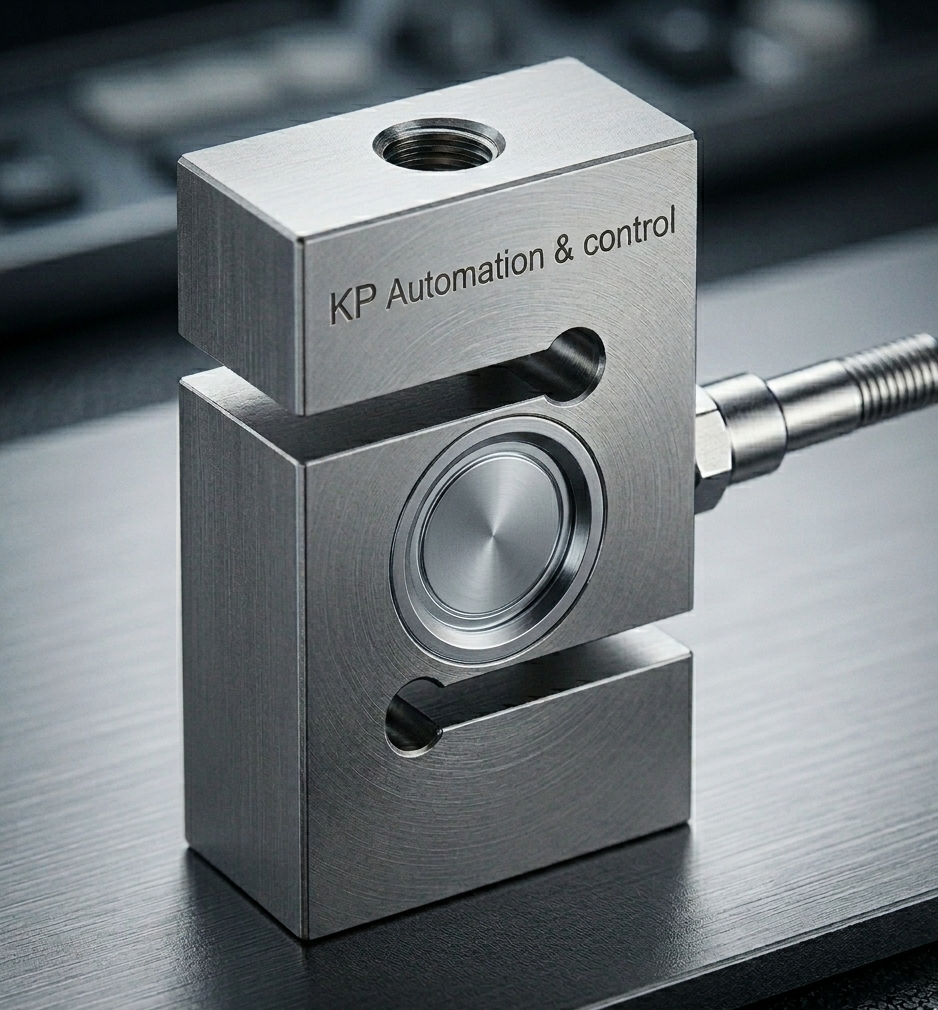

S-Type Load Cell
50-6000 Kg | Suspended Hoppers | Stainless Steel
₹1800.00
S-Type Load Cell is designed for accurate tension and compression force measurement in suspended hoppers, crane scales, and industrial force monitoring systems. It delivers corrosion resistance, stable output, and dependable long-term performance for Ahmedabad, Gandhinagar, and nearby industrial use.
Parameter | Value |
|---|---|
Product Name | S-Type Load Cell |
Model Name/Number | S-Type Load Cell |
Brand | KP Control and Automation |
Capacity | 50-6000 Kg |
Accuracy Class | OIML R60 C3 |
Original Mentioned Brand | Thames |
Material | Stainless Steel |
Ingress Protection | IP67 |
Original Mentioned Model | T60 |
Application | Suspended Hoppers |
Features | Corrosion Resistant |
Load Cell Certifications | OIML |
Output Sensitivity(FS) | 2.0 +/- 0.1 mV/V |
Combined Error | <= +/- 0.015 |
Creep Error (30 minutes) | <= +/- 0.016 |
Temperature Effect on Zero | <= +/- 0.002 |
Temperature Effect on Output | <= +/- 0.0012 |
Zero balance | +/- 2.0% FS |
Maximum Safe Overload | 150% FS |
Ultimate Safe Overload | 300% FS |
Recommended Excitation Voltage | 10 to 12V DC |
Maximum Excitation Voltage | 15V DC |
Input Resistance | 400 +/- 20 Ohm |
Output Resistance | 350 +/- 3 Ohm |
Insulation resistance at 50V DC | >= 5000 M Ohm |
Compensated Temperature Range | -10 to +40 Deg C |
Operating Temperatue Range | -30 to +70 Deg C |
Load Cell Intervals (nLC)/Divisions | 3000 |
Cable Length | 6 Meter |
Feature | Details |
|---|---|
Installation | Simple low cost installation |
Corrosion Resistance | Corrosion Resistant |
Construction | High quality steel load sensor |
Protection | Fully potted & sealed to IP67 |
Design | Industry standard configuration |
Use Cases | Tension & Compression testing, Tank & Vessel Weighing, Bag filling machines, Concrete batching equipments & conveyors |
