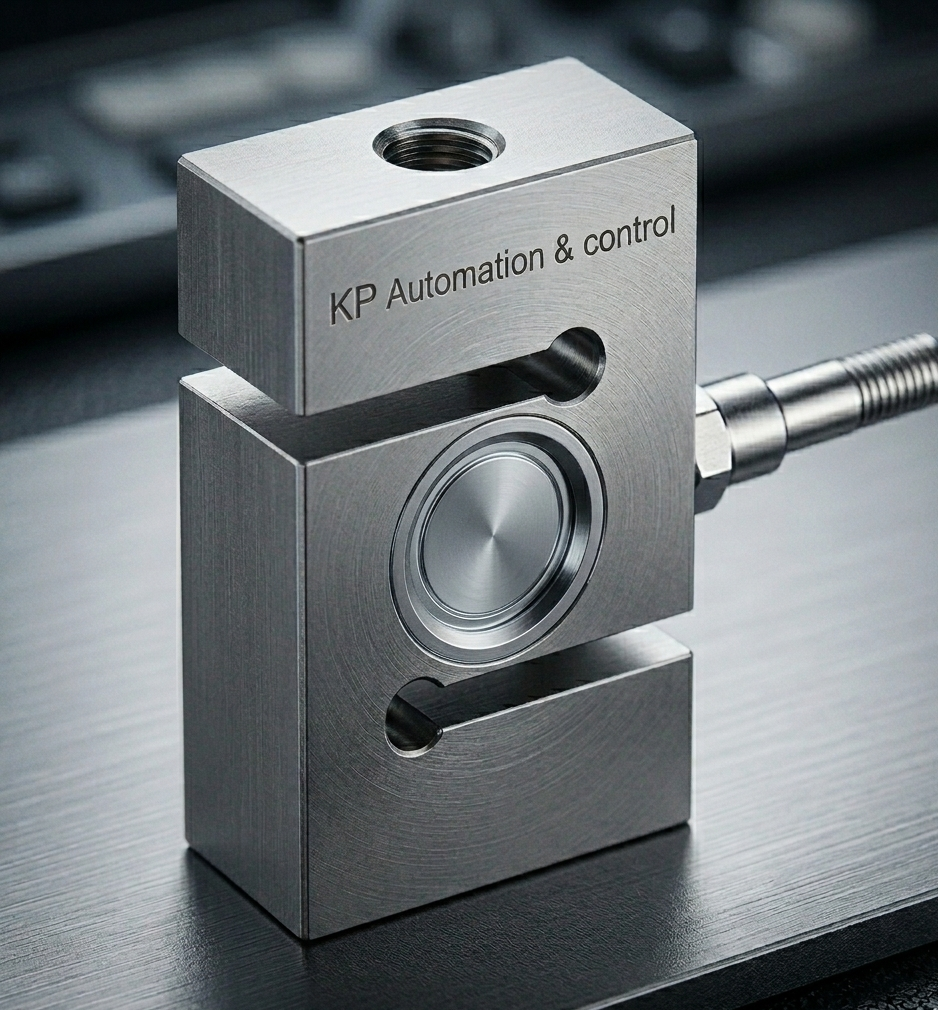

S Type Load Cell
5-2000 Kg | Tensile Testing Machine | IP68
₹1890.00
S Type Load Cell is built for both tension and compression force measurement in tensile testing machines, crane scales, and industrial monitoring systems. It provides stable output, high accuracy, and dependable performance for Ahmedabad, Gandhinagar, and nearby industrial applications.
Parameter | Value |
|---|---|
Product Name | S Type Load Cell |
Model Name/Number | S Type Load Cell |
Brand | KP Control and Automation |
Capacity | 5 - 2000 Kg |
Material | Alloy Steel |
Ingress Protection | IP68 |
Original Mentioned Model | KP-301 |
Application | Tensile Testing Machine |
Features | High Accuracy & Precision |
Output Sensitivity(FS) | 2.0 +/- 0.002 mV/V |
Zero balance | +/- 1% FS |
Maximum Safe Overload | 150% FS |
Recommended Excitation Voltage | 5 to 12V DC |
Maximum Excitation Voltage | 15V DC |
Insulation resistance at 50V DC | >= 1000 M Ohm |
Compensated Temperature Range | -10 to +40 Deg C |
Feature | Details |
|---|---|
Display | 6 Digit Seven Segment Display |
Tare Facility | Manual / Auto Tare facility available |
Power Supply | 230 VAC 50 HZ |
Accuracy | 0.02 % of Full Scale accuracy |
Mounting | Easy to Panel Mount |
Calibration | Software calibration |
PLC Support | PLC through calibration also availabe |
Optional Parameter | Value |
|---|---|
Relay Setpoint | 4 Relay Setpoint |
Inputs | 3 Input |
Linear Output | 0-10volt DC or 4-20 ma DC |
Communication | RS485 modbus communication |
Size Options | 96mm×96mm / 48 mm x 96 mm / dinrail controller with display / dinrail analogue without display |
Quality | 100 % Quality Assurance Product |
Customization | We Also provide Customer to Customize Product . |
