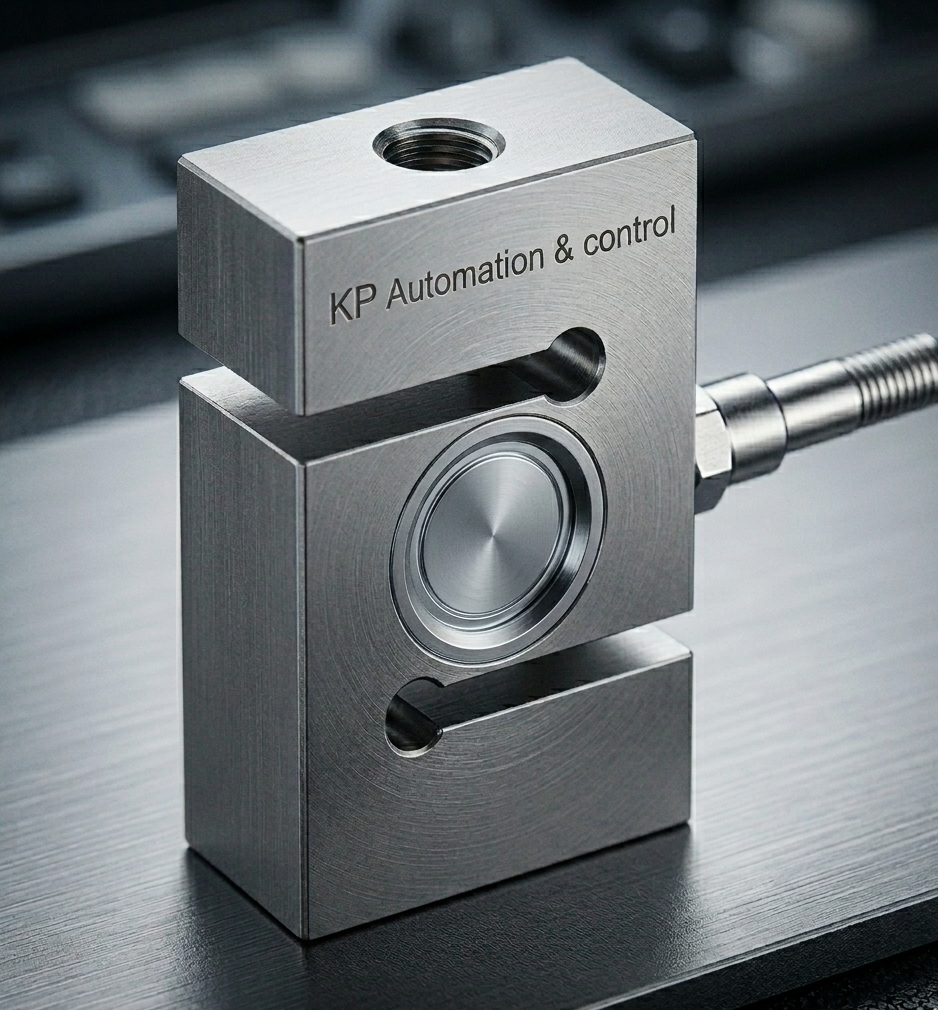

S Type Load Cell
5 kg to 10 ton | Universal | Alloy Steel
₹2000.00
S Type Load Cell is a versatile solution for both tension and compression force measurement in crane scales, material testing, and industrial weighing systems. It delivers stable output, high accuracy, and dependable performance for Ahmedabad, Gandhinagar, and nearby industrial applications.
Parameter | Value |
|---|---|
Product Name | S Type Load Cell |
Model Name/Number | S Type Load Cell |
Brand | KP Control and Automation |
Load Capacity | 5 kg to 10 ton |
Type | Universal |
Material | Alloy Steel |
Minimum Order Quantity | 1 Piece |
Parameter | Value |
|---|---|
Rated Load (KG) | 5 to 1100 |
Precision | C2/C3 |
Output Impedance | 350 ± 5 Ω |
Composition Error | 0.03/0.02 |
Insulation | > 20000 MΩ |
Rated Output | 3.0 ± 0.2 mV/V |
Excitation Voltage | 5~15 VDC |
Non-Linearity | 0.025 %FS |
Compensated Temp. | -10~+50 °C |
Hysteresis | 0.02 %FS |
Use Temp. | -20~+60 °C |
Repeatability | 0.02/0.01 %FS |
Temp. Effect on Span | 0.02 %FS |
Creep | 0.03/0.02 %FS |
Temp. Effect on Zero | 0.02 %FS |
Zero Balance | ± 1.0 %FS |
Safe Overload | 120 %FS |
Input Impedance | 400 ± 10 Ω |
Ultimate Overload | 150 %FS |
