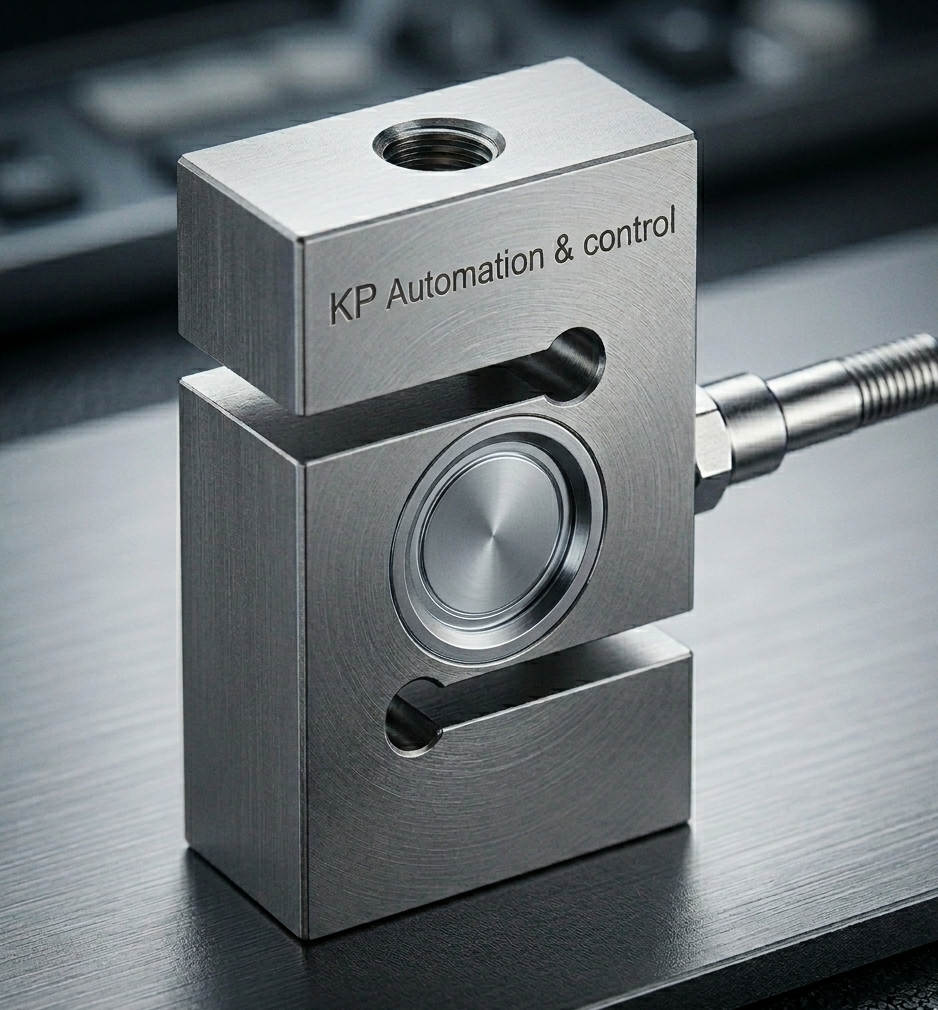

S Type Load Cell
Up to 2000kg | Nickel Alloy Steel | Tensile Testing Machine
₹3500.00
S Type Load Cell is suitable for tension and compression measurement in tensile testing machines and industrial force monitoring systems. It offers stable output, strong alloy steel construction, and accurate performance for Ahmedabad, Gandhinagar, and nearby industrial use.
Parameter | Value |
|---|---|
Product Name | S Type Load Cell |
Model Name/Number | S Type Load Cell |
Brand | KP Control and Automation |
Material | Nickel Alloy Steel |
Ingress Protection | IP68 |
Original Mentioned Model | Celtron STC |
Capacity | Upto 2000kg |
Application | Tensile Testing Machine |
Features | High Accuracy & Precision |
Output Sensitivity(FS) | 2.0 +/- 0.002 mV/V |
Combined Error | 0.001 |
Creep Error (30 minutes) | 0.001 |
Accuracy Class | OIML R60 C3 |
Temperature Effect on Zero | 0.pp1 |
Temperature Effect on Output | 0.001 |
Zero balance | +/- 1% FS |
Maximum Safe Overload | 150% FS |
Ultimate Safe Overload | 180% FS |
Recommended Excitation Voltage | 9 to 12V DC |
Maximum Excitation Voltage | 15V DC |
Input Resistance | 390 |
Output Resistance | 350 |
Insulation resistance at 50V DC | >= 5000 M Ohm |
Compensated Temperature Range | -30 to +70 Deg C |
Operating Temperatue Range | -20 to +70 Deg C |
Load Cell Intervals (nLC)/Divisions | 3000 |
Cable Length | 5 |
Parameter | Value |
|---|---|
Original Product Info | Celtron STC model S Type Loadcell |
Function | Converts force such as tension, compression, pressure, or torque into an electrical signal |
Common Types Mentioned | pneumatic, hydraulic, and strain gauges |
