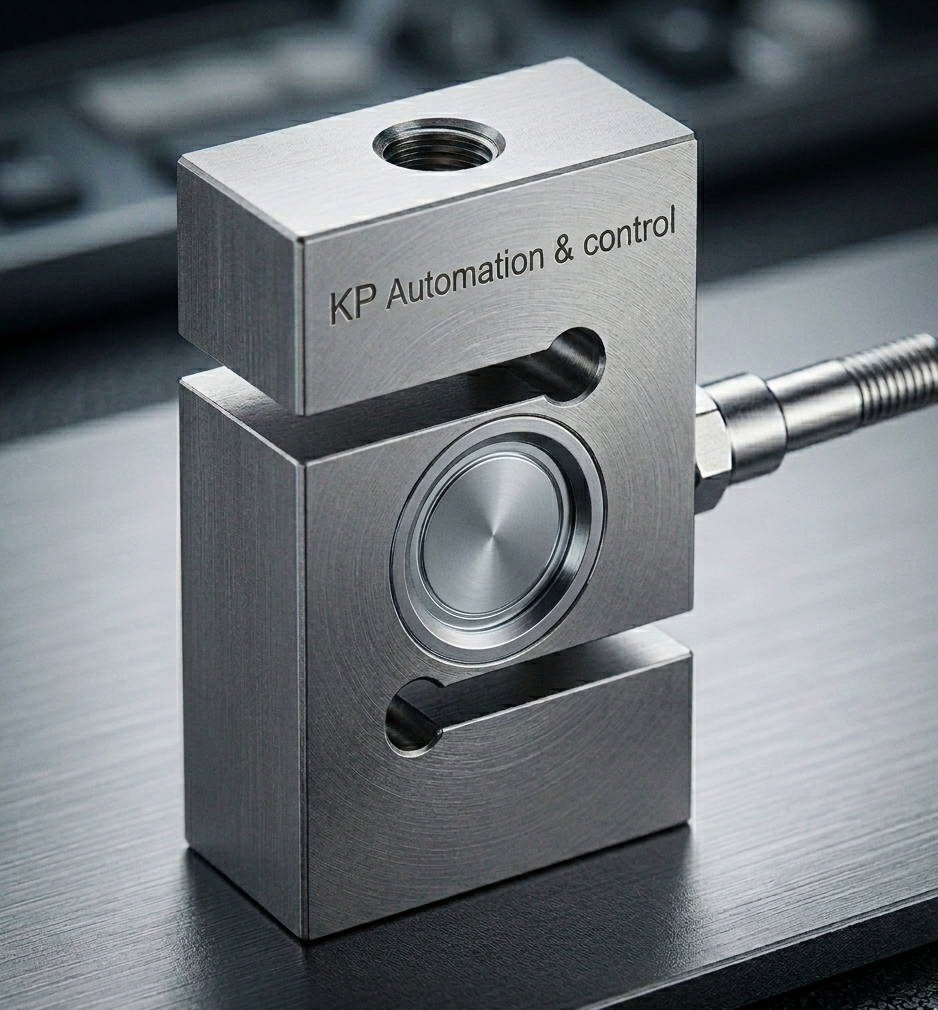

Sensortronics 60001 S Type Load Cells
Upto 2T | Suspended Hoppers | IP68
₹4550.00
Sensortronics 60001 S Type Load Cells are designed for suspended hoppers, truck scales, and industrial automation where high precision and hermetically sealed protection are required. They offer dependable force measurement for Ahmedabad, Gandhinagar, and nearby industrial users.
Parameter | Value |
|---|---|
Product Name | Sensortronics 60001 S Type Load Cells |
Model Name/Number | Sensortronics 60001 S Type Load Cells |
Brand | KP Control and Automation |
Original Mentioned Brand | Sensortronics |
Material | Nickel Alloy Steel |
Ingress Protection | IP68 |
Original Mentioned Model | 60001 |
Capacity | Upto 2T |
Application | Suspended Hoppers |
Features | Hermetically Sealed, High Accuracy & Precision |
Output Sensitivity(FS) | 3.0 +/- 0.003 mV/V |
Combined Error | 0.0001% |
Creep Error (30 minutes) | 0.001% |
Accuracy Class | OIML R60 C3 |
Temperature Effect on Zero | 0.0001% |
Temperature Effect on Output | 0.001% |
Zero balance | +/- 1% FS |
Maximum Safe Overload | 150% FS |
Ultimate Safe Overload | 180% FS |
Recommended Excitation Voltage | 9 to 12V DC |
Maximum Excitation Voltage | 15V DC |
Input Resistance | 390 |
Output Resistance | 350 |
Insulation resistance at 50V DC | >= 5000 M Ohm |
Compensated Temperature Range | -30 to +70 Deg C |
Operating Temperatue Range | -20 to +70 Deg C |
Load Cell Intervals (nLC)/Divisions | 3000 |
Cable Length | 5 |
Feature | Details |
|---|---|
Construction | Multicoloumn construction |
Protection | Hemetically sealed |
Suitable For | Truck scale |
Suitable For | Hopper Weighing |
Suitable For | Industrial Automation |
