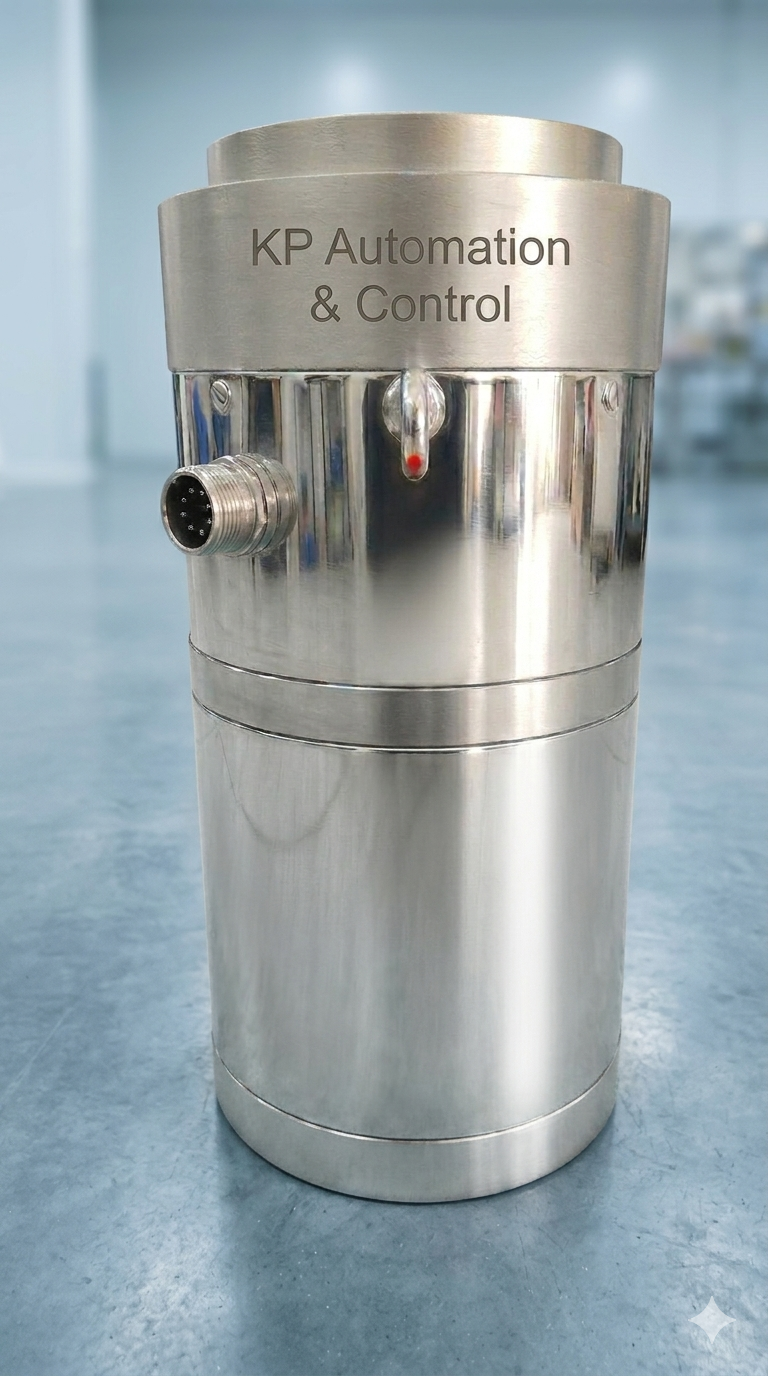

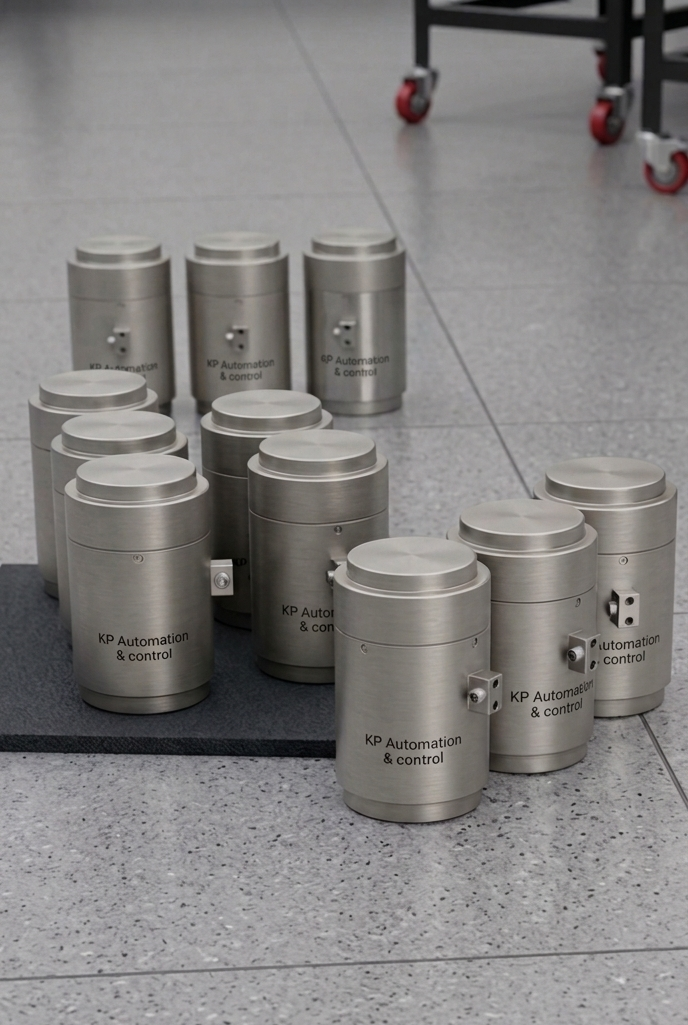

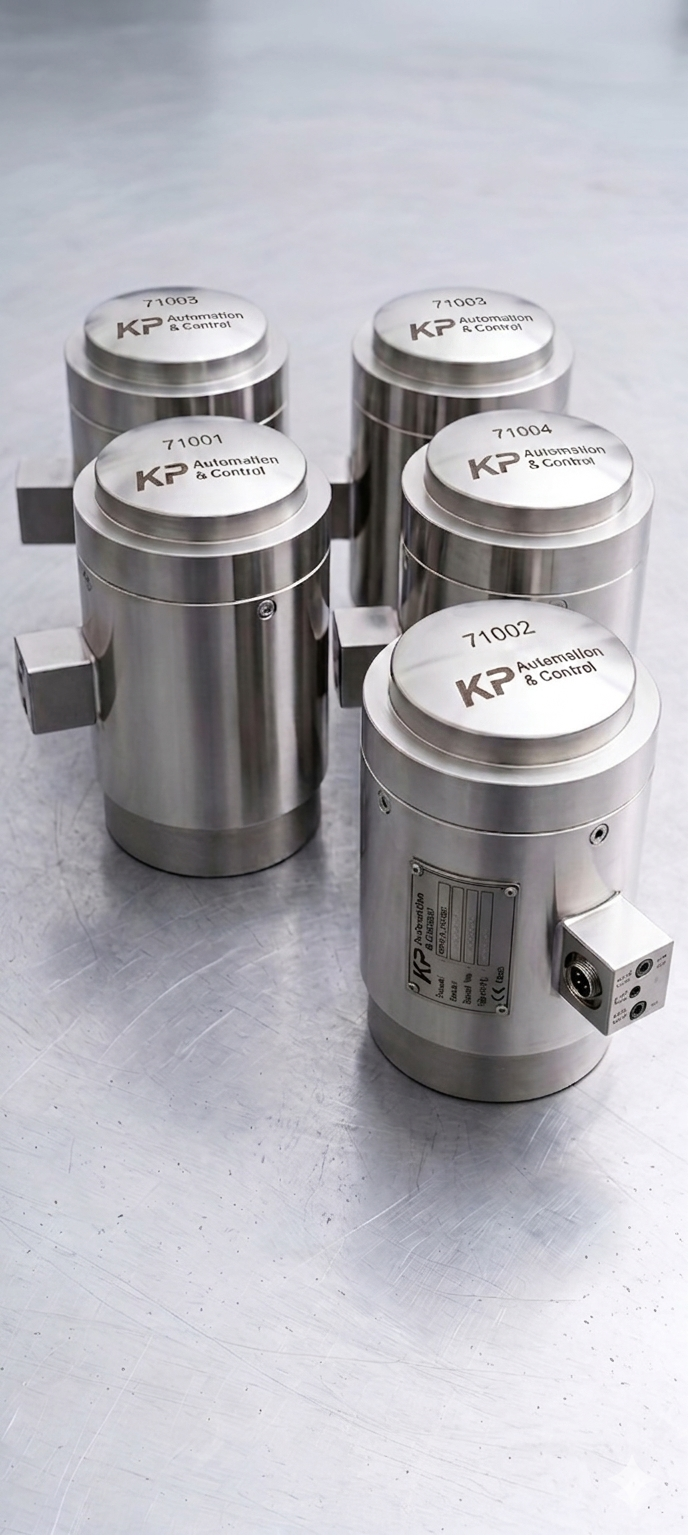

Sensotronics 97003 Compression loadcell
30 Ton | Truck Scales | IP68
₹17000.00
Sensotronics 97003 Compression loadcell is designed for truck scales, hopper weighing, and industrial automation where high-capacity compression measurement is required. It offers hermetically sealed protection, stable output, and dependable performance for Ahmedabad, Gandhinagar, and nearby industrial applications.
Parameter | Value |
|---|---|
Product Name | Sensotronics 97003 Compression loadcell |
Model Name/Number | Sensotronics 97003 Compression loadcell |
Brand | KP Control and Automation |
Capacity | 30 Ton |
Material | Nickel Alloy Steel |
Ingress Protection | IP68 |
Application | Truck Scales |
Original Mentioned Model | 97003 |
Original Mentioned Brand | Sensotronics |
Features | Hermetically Sealed |
Output Sensitivity(FS) | 2.0 +/- 0.002 mV/V |
Combined Error | 0.001 |
Creep Error (30 minutes) | 0.001 |
Accuracy Class | OIML R60 C3 |
Temperature Effect on Zero | 0.001 |
Temperature Effect on Output | 0.001 |
Zero balance | +/- 1% FS |
Maximum Safe Overload | 150% FS |
Ultimate Safe Overload | 200% FS |
Recommended Excitation Voltage | 9 to 12V DC |
Maximum Excitation Voltage | 15V DC |
Input Resistance | 1500 |
Output Resistance | 1400 |
Insulation resistance at 50V DC | >= 5000 M Ohm |
Compensated Temperature Range | -30 to +70 Deg C |
Operating Temperature Range | -20 to +70 Deg C |
Load Cell Intervals (nLC)/Divisions | 3000 |
Cable Length | 15 |
Feature | Details |
|---|---|
Construction | Multicoloumn construction |
Protection | Hemetically sealed |
Suitable For | Truck scale |
Suitable For | Hopper Weighing |
Suitable For | Industrial Automation |
