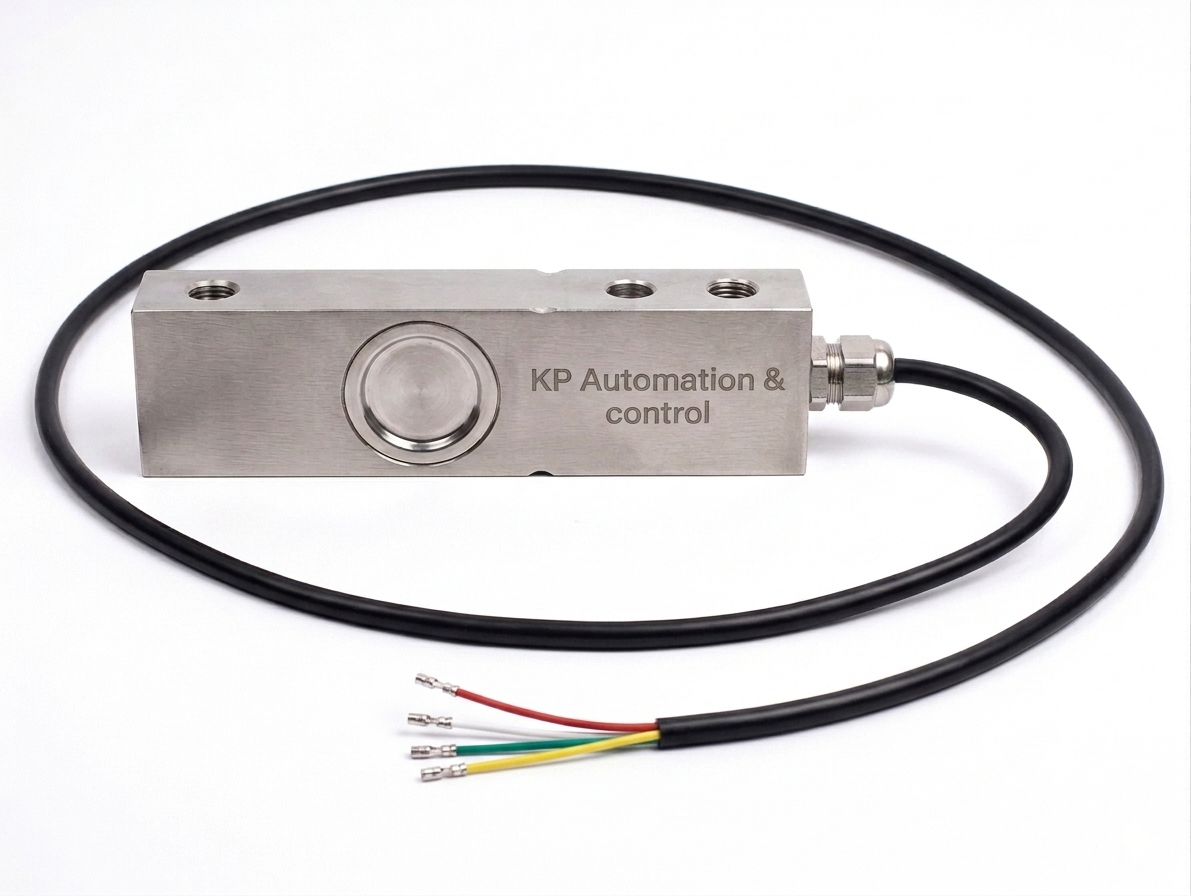

Shear Beam Type Load Cell
10kg | Compression | IP68
₹1200.00
Shear Beam Type Load Cell is designed for precise industrial weighing in textile machinery, automation systems, and general load monitoring applications. It offers high accuracy, sealed protection, and stable long-term performance for Ahmedabad, Gandhinagar, and nearby industries.
Parameter | Value |
|---|---|
Product Name | Shear Beam Type Load Cell |
Model Name/Number | Shear Beam Type Load Cell |
Brand | KP Control and Automation |
Capacity | 10kg |
Load Type | Compression |
Accuracy Class | OIML R60 C3 |
Ingress Protection | IP68 |
Material | Alloy Steel |
Application | Textile Machinery |
Original Mentioned Model | KP-803 |
Features | High Accuracy & Precision |
Output Sensitivity(FS) | 3.0 +/- 0.003 mV/V |
Temperature Effect on Zero | 0.001% |
Temperature Effect on Output | 0.001% |
Zero balance | +/- 1% FS |
Maximum Safe Overload | 150% FS |
Ultimate Safe Overload | 180% FS |
Recommended Excitation Voltage | 5 to 12V DC |
Maximum Excitation Voltage | 15V DC |
Input Resistance | 390 |
Output Resistance | 350 |
Insulation resistance at 50V DC | >= 5000 M Ohm |
Compensated Temperature Range | -20 to +70 Deg C |
Operating Temperatue Range | -10 to +40 Deg C |
Load Cell Intervals (nLC)/Divisions | 3000 |
Cable Length | 5 mtr |
Parameter | Value |
|---|---|
Capacity Range | 5 kg to 5 tons |
Suitable For | Weighing systems |
Suitable For | Batch and filling systems |
Suitable For | Packing machines |
Suitable For | Testing equipment |
Suitable For | Industrial automation |
Suitable For | Custom weighing applications |
