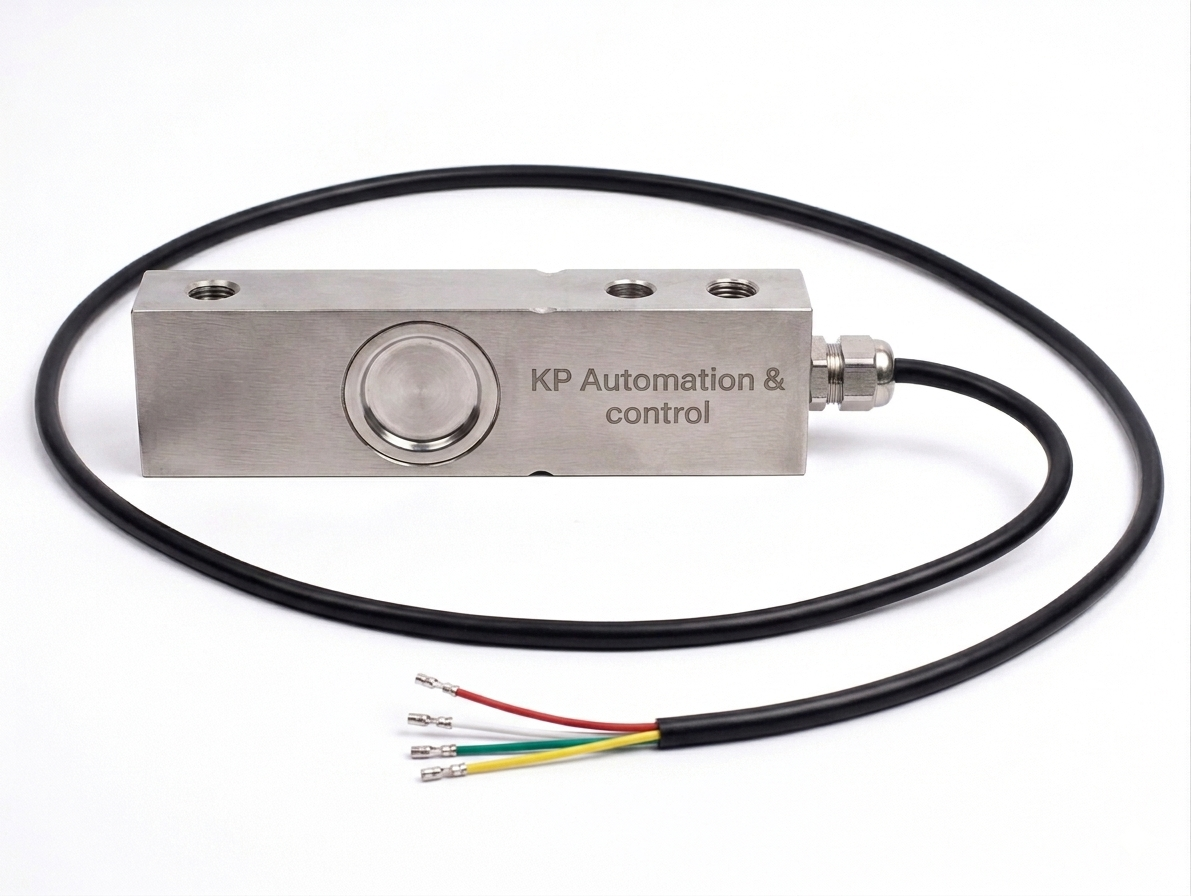

Single Ended Shear Beam Load Cell
100 kg | C3 | IP68
₹1520.00
Single Ended Shear Beam Load Cell is designed for platform scales, hopper systems, conveyor weighing, and industrial automation where stable output and high repeatability are required. It offers reliable industrial performance for Ahmedabad, Gandhinagar, and nearby areas.
Parameter | Value |
|---|---|
Product Name | Single Ended Shear Beam Load Cell |
Model Name/Number | Single Ended Shear Beam Load Cell |
Brand | KP Control and Automation |
Capacity | 100 kg |
Type | Automatic |
Accuracy Class | C3 |
Protection Class | IP68 |
Output Sensitivity | 3 mV/V |
Material | Alloy Steel |
Mounting Type | Single Ended |
Original Mentioned Model | Kp |
Recommended Excitation Voltage | 5 to 12V DC |
Minimum Order Quantity | 1 Piece |
Feature | Details |
|---|---|
Accuracy | High accuracy and excellent repeatability |
Construction | Robust alloy steel for long service life |
Design | Compact and low-profile for easy installation |
Capacity Range | Wide capacity range for industrial applications |
Output | Stable output signal with minimal creep and hysteresis |
System Use | Suitable for single or multiple load cell weighing systems |
Parameter | Value |
|---|---|
Suitable For | Platform weighing scales |
Suitable For | Hopper and tank weighing systems |
Suitable For | Conveyor and belt scales |
Suitable For | Packaging and batching machines |
Suitable For | Industrial automation and process control |
Rated Load (KG) | 100, 200, 300, 500, 750 |
Rated Load (T) | 1, 1.5, 2, 2.5, 3, 5, 7.5, 10 |
Parameter | Value |
|---|---|
Precision | C2/C3 |
Output Impedance | 350 + 5 |
Composition Error | 0.03 / 0.02 |
Insulation | > 20000 MΩ |
Rated Output | 3.0 + 0.2 mV/V |
Excitation Voltage | 5~15 (DC) |
Non-Linearity | 0.025 %FS |
Compensated Temp. | -10~+50 °C |
Hysteresis | 0.02 %FS |
Use Temp. | -20~+60 °C |
Repeatability | 0.02 / 0.01 %FS |
Temp. Effect on Span | 0.02 %FS |
Creep | 0.03 / 0.02 %FS |
Temp. Effect on Zero | 0.02 %FS |
Zero Balance | + 1.0 %FS |
Safe Overload | 120 %FS |
Input Impedance | 400 + 10 |
Ultimate Overload | 150 %FS |
