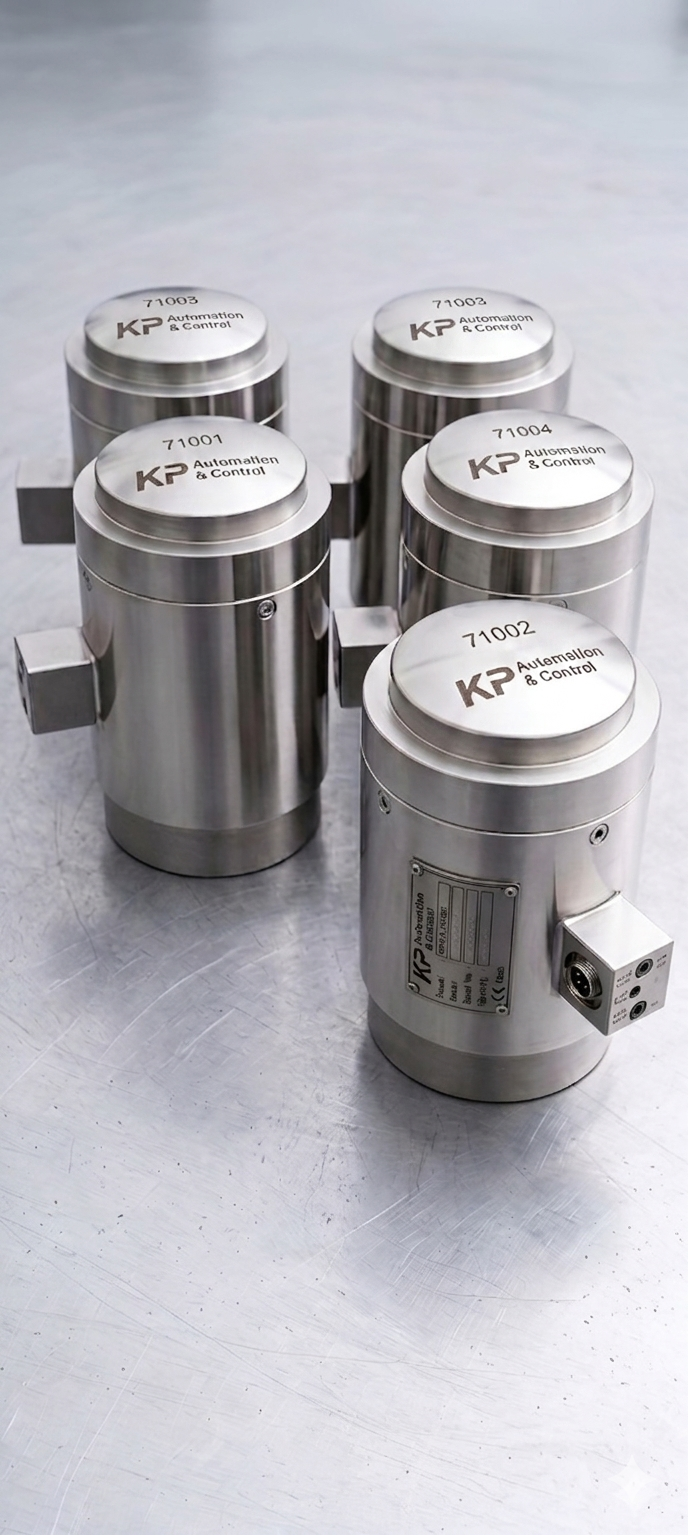

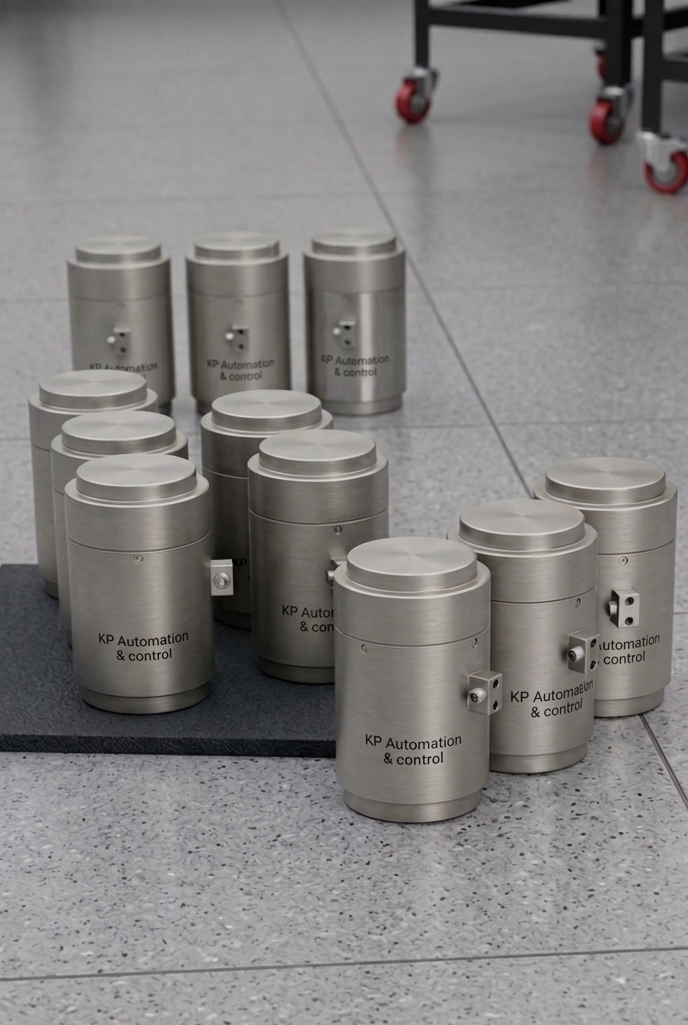

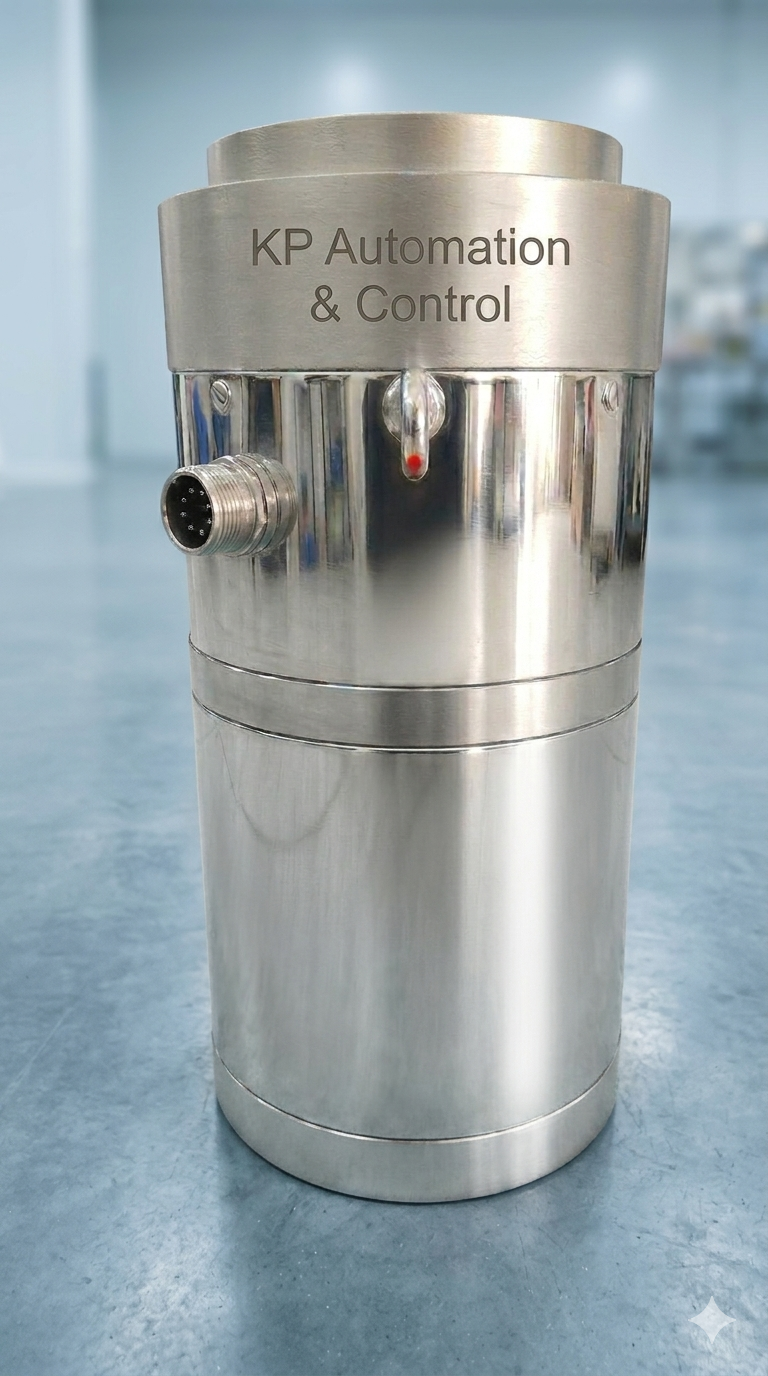

T34 Load Cell
T34 Load Cell
₹3300.00
T34 Load Cell is designed for hopper scale and heavy industrial weighing applications where strong construction and stable compression measurement are required. It offers dependable output and sealed protection for Ahmedabad, Gandhinagar, and nearby industrial environments.
Parameter | Value |
|---|---|
Product Name | T34 Load Cell |
Model Name/Number | T34 Load Cell |
Brand | KP Control and Automation |
Capacity | 50 Ton |
Material | Stainless Steel |
Ingress Protection | IP64 |
Application | Hopper Scales |
Original Mentioned Brand | ADI |
Features | Hermetically Sealed |
Load Cell Certifications | OIML |
Parameter | Value |
|---|---|
Capacity Options | 10 ton, 15 ton, 20 ton, 30 ton, 40 ton, 50 ton, 60 ton, 100 ton, 200 ton, 400 ton, 600 ton, 800 ton, 1000 ton |
Rated Output | 2.0 ± 0.5% mV/V |
Accuracy Class | 4000 - n. OIML |
Recommended Supply Voltage | 5-15 V |
Maximum Supply Voltage | 15 V |
Safe Overload | 150 % |
Combined Error | < ±0.013 or < ±0.05% |
Non-Repeatability | < ±0.015% |
Output at Zero Load | ±2.0 |
Input Resistance | 800 Ω ± 5 |
Output Resistance | 705 Ω ± 5 |
Operational Temperature Range | -50 to +70 °C |
Compensated Temperature Range | 0 to +50 °C |
Temperature Coefficient on Zero | < ±0.002 % / °C |
Temperature Coefficient on Span | < ±0.0012 % / °C or < ±0.0036 % / °C |
Creep Error (30 minutes) | < ±0.012 % or < ±0.048 % |
Environmental Protection | IP68 / IP69k |
Cable Length | 20 m |
Cable Material | Polyurethane |
Insulation Resistance | >5000 MΩ @100DC |
