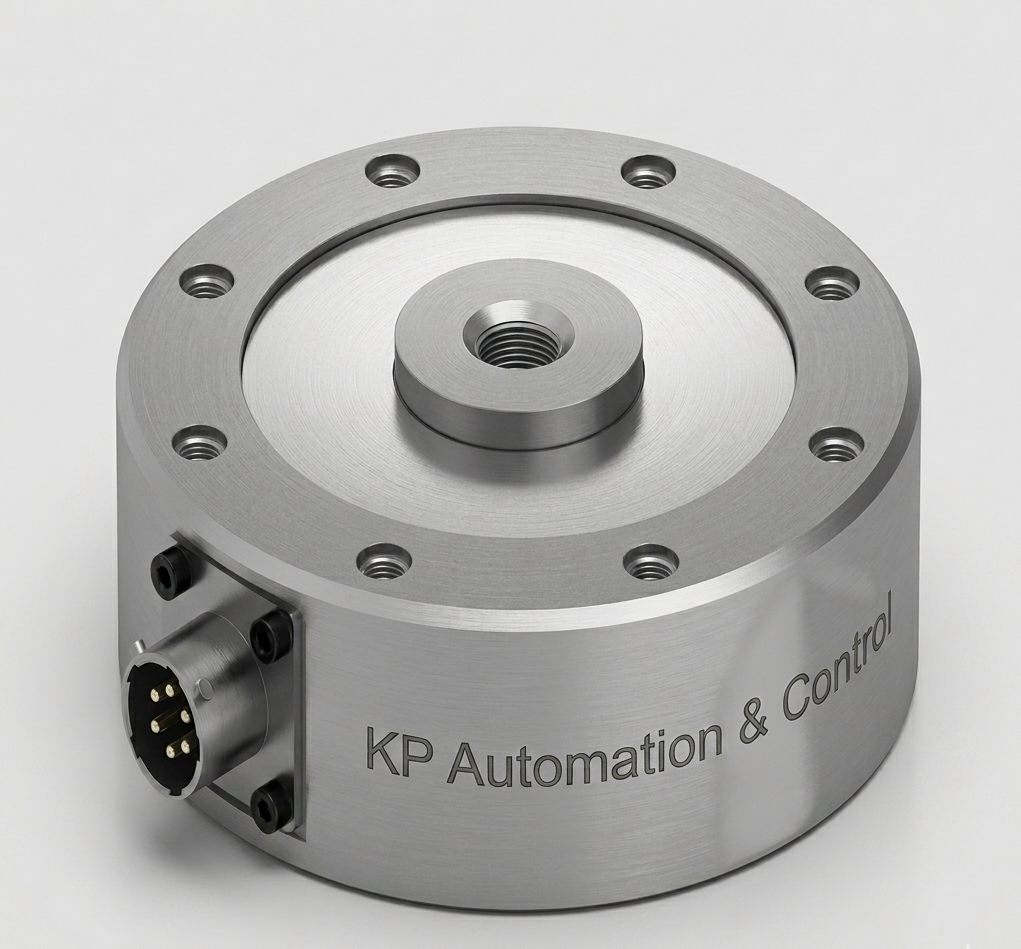

Universal Pancake Load Cell
5 ton to 2000 ton | Suspended Hoppers | IP68
₹2500.00
Universal Pancake Load Cell is built for accurate force measurement in suspended hoppers and heavy-duty industrial weighing systems. It offers strong overload resistance, dependable sealing, and stable performance for industrial applications in Ahmedabad, Gandhinagar, and nearby locations
Parameter | Value |
|---|---|
Product Name | Universal Pancake Load Cell |
Model Name/Number | Universal Pancake Load Cell |
Brand | KP Control and Automation |
Capacity | 5 ton to 2000 ton |
Accuracy Class | C3 |
Construction Type | pancake |
Application | Suspended Hoppers |
Material | Alloy Steel |
Output Sensitivity | 2 mV/V |
Original Mentioned Model | KP 203 |
Ingress Protection | IP68 |
Features | Hermetically Sealed |
Minimum Order Quantity | 1 Piece |
Parameter | Value |
|---|---|
Allowable Overload | ≥ 120% of rated capacity |
Maximum Overload | ≥ 150% of rated capacity |
Protection Rating | IP65 to IP68 |
Operating Temperature Range | −40 °C to +85 °C |
